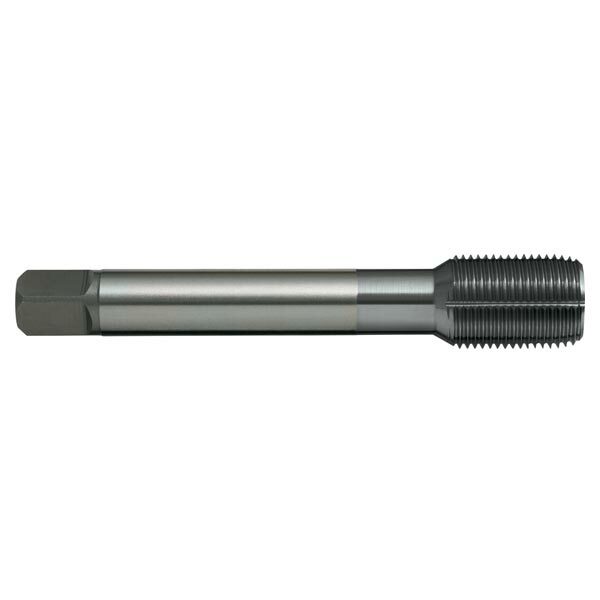

Sutton T3630973 BSPF G 1/8 x 28 Thread Forming Tap - HSSE V3 TiCN

Description

Features

For cold forming of threads in materials with good flow characteristics
Brt - For non-ferrous materials
TiCN - Suitable for abrasive and difficult materials
Through or blind holes
Suitable for machine operations
Depths up to approx. 3 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Fluteless - Multi Coolant Groove
Standard: DIN5156
Thread Form: ISO G Parallel Series 55° (G-BSPF)
Nut Tolerance: ISO 228 X
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Stainless Steel - Austenitic: Age Hardened
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications

AIMS SKU A0014628

Brand Sutton Tools

Model Number T3630973

Barcode Number 9311963191850

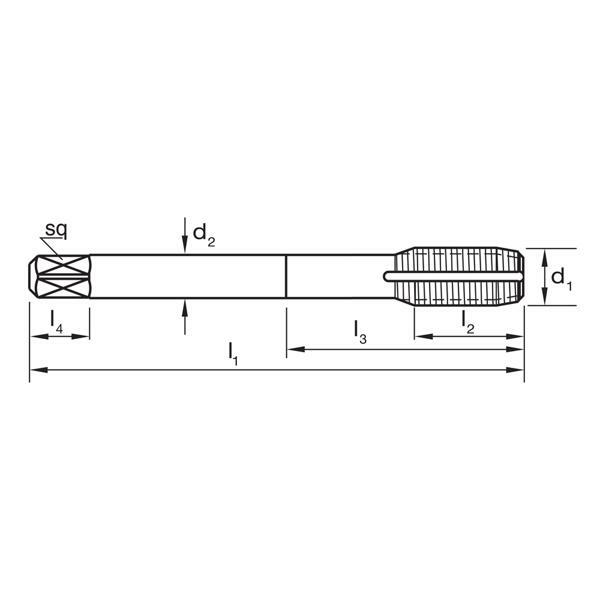

TPI 28

Shank (mm) 7

L1 (mm) 90

Diameter G1/8

L2 (mm) 20

Drill Size (mm) 9.25

L4 (mm) 8

Square Size (mm) 5.5

Group Code T363
System of Measurement DIN5156
Thread Form ISO G Parallel Series 55° (G-BSPF)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Titanium Carbonitride (TiCN)
Lead Form C / 3 x P
Application N (for normal general purpose type materials)
Shank Form Reduced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Fluteless - Multi Coolant Groove
Nut Tolerance ISO 228 X
