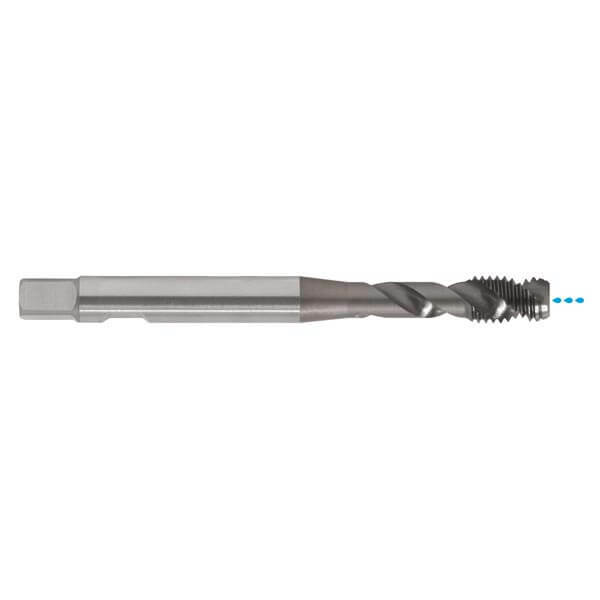

Sutton T3710600 M6 x 1 Spiral Flute Tap - R45 AI IK Synchro - HSSE V3 CrN

Description

Features

For high speed and precision tapping
For rigid tapping in CNC machines with synchronised feed for aluminium & aluminium alloys
Blind holes up to 2 x d1
h6 endmill shank

Specifications

Designation: Al (for malleable aluminum with long chips)
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Chromium Nitride (CrN)
Max Cut Depth: 2xD
Shank Form: Reinforced Shank (square-end, drive-flat)
Helix Angle: R45
X: ru
Type: Spiral Flute
Standard: Sutton
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Applications

Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Specifications

AIMS SKU A0014670

Brand Sutton Tools

Model Number T3710600

Barcode Number 9311963431383

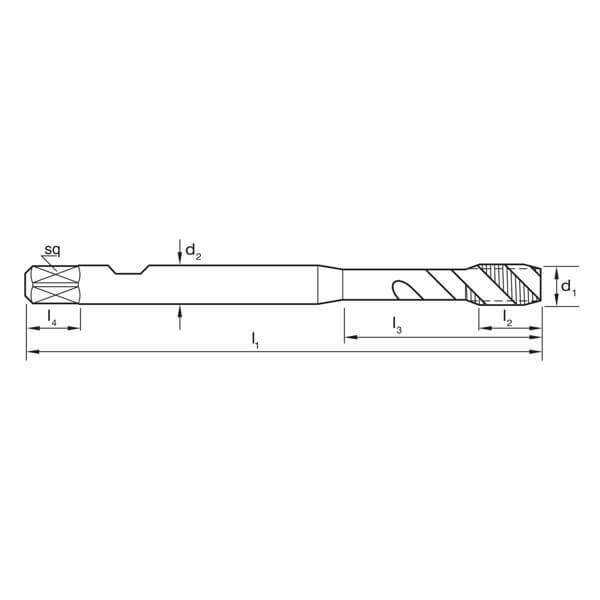

Shank (mm) 6

L1 (mm) 80

L2 (mm) 10

L3 (mm) 30

z 2

Diameter (metric) M6

Drill Size (mm) 5

L4 (mm) 8

Square Size (mm) 4.9

Group Code T371
System of Measurement Sutton
Thread Form ISO Metric Coarse (M)
Material Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish Chromium Nitride (CrN)
Lead Form C / 3 x P
Helix Angle R45
Application Al (for malleable aluminum with long chips)
Shank Form Reinforced Shank (square-end/ drive-flat)
Max Cut Depth 2xD
Tap Type Spiral Flute
Nut Tolerance 6HX
