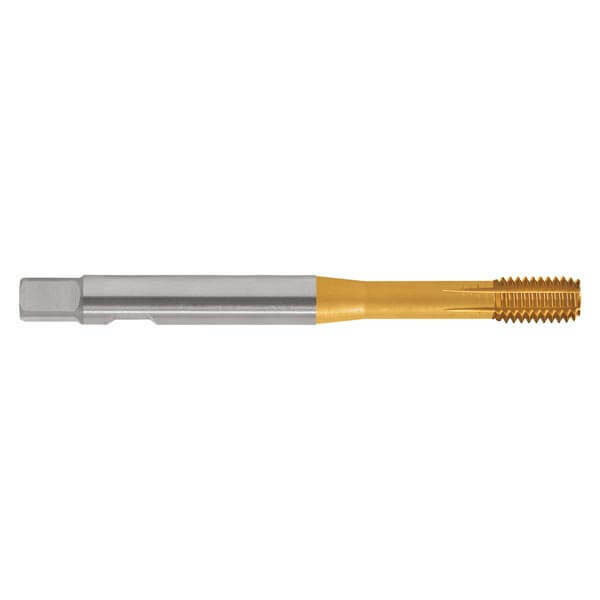

Sutton T381 Metric Thread Forming Tap - Synchro - Vanadium HSS Tinite - Sutton Tools

Description

Features

For high speed and precision tapping
For rigid tapping in CNC machines with synchronised feed
For aluminium and aluminium alloys
Process of plastic deformation to imprint thread on material
Blind and through holes up to 2 x d1
h6 endmill shank

Specifications

Designation: N (for normal general purpose type materials)
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 2xD
Shank Form: Reinforced Shank (square-end, drive-flat)
X: als
Type: Fluteless - Multi Coolant Groove
Standard: Sutton
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Stainless Steel - Austenitic: Age Hardened
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Specifications

AIMS SKU A0014722

Brand Sutton Tools

Model Number T3810200

Barcode Number 9311963432038

Shank (mm) 6

L1 (mm) 70

Pitch (mm) 0.4

L2 (mm) 4

L3 (mm) 13

Diameter (metric) M2

Drill Size (mm) 1.8

L4 (mm) 8

Square Size (mm) 4.9

Group Code T381
System of Measurement Sutton
Thread Form ISO Metric Coarse (M)
Material Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish Titanium Nitride (TiN)
Lead Form C / 3 x P
Application N (for normal general purpose type materials)
Shank Form Reinforced Shank (square-end/ drive-flat)
Max Cut Depth 2xD
Tap Type Fluteless - Multi Coolant Groove
Nut Tolerance 6HX
