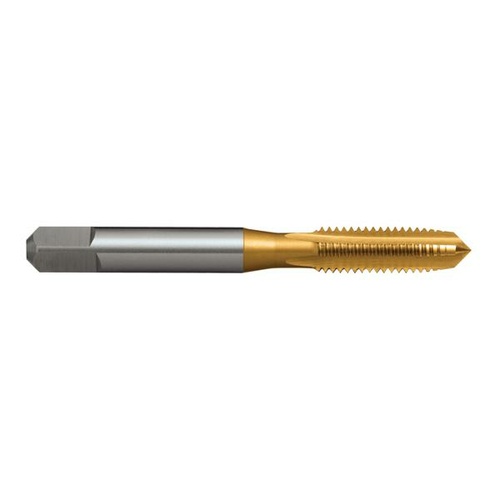

Sutton T387 Metric Straight Flute Tap - Intermediate - HSS Tinite - Sutton Tools

Description

Features

Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: High Speed Steel (HSS)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 1xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: ISO529
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Intermediate

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Specifications

AIMS SKU Sutton-T387

Brand Sutton Tools

Model Number T387

System of Measurement ISO529

Thread Form ISO Metric Coarse (M)

Material High Speed Steel (HSS)

Finish Titanium Nitride (TiN)

Lead Intermediate

Application N (for normal general purpose type materials)

Shank Form Reinforced Shank (with square drive)

Max Cut Depth 1xD

Tap Type Straight Flute

Nut Tolerance ISO 2 / 6H

Group Code T387
System of Measurement ISO529
Thread Form ISO Metric Coarse (M)
Material High Speed Steel (HSS)
Finish Titanium Nitride (TiN)
Lead Intermediate
Application N (for normal general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 1xD
Tap Type Straight Flute
Nut Tolerance ISO 2 / 6H
