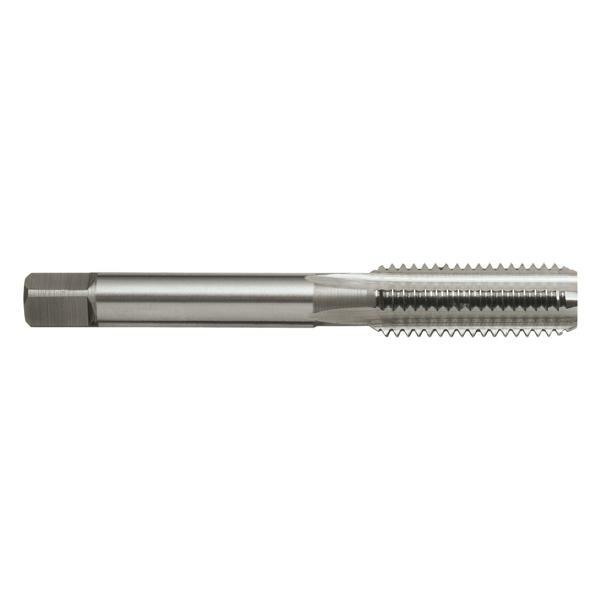

Sutton T3922400 M24 x 3 Straight Flute Tap - Bottoming - Oversize - HSS

Description

Features

Oversize allowance to suit components for galvanize plating
General purpose use, materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx 1 x d1
Taper and inter leads available on request

Specifications

Designation:
Material: High Speed Steel (HSS)
Finish: Bright
Max Cut Depth: 1xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Straight Flute
Standard: ISO529
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Bottoming

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications

AIMS SKU A0014896

Brand Sutton Tools

Model Number T3922400

Barcode Number 9311963347837

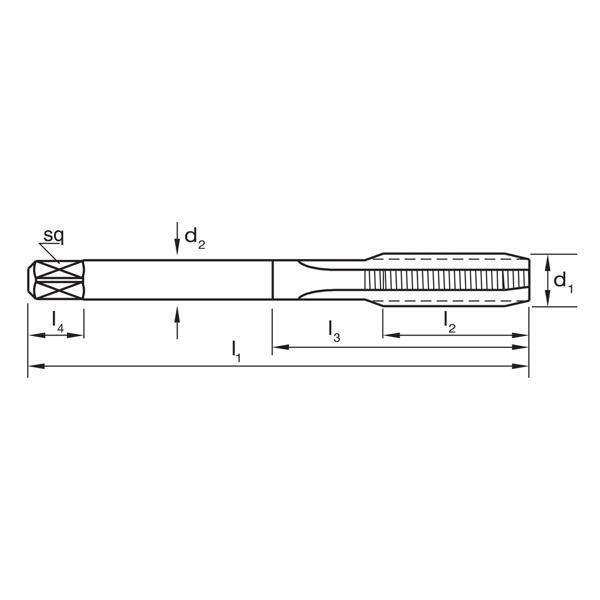

Shank (mm) 18

L1 (mm) 130

Pitch (mm) 3

L2 (mm) 45

z 4

Diameter (metric) M24

Drill Size (mm) 21.5

L4 (mm) 18

Sq 14

Group Code T392
System of Measurement ISO529
Thread Form ISO Metric Coarse (M)
Material High Speed Steel (HSS)
Finish Bright
Lead Bottoming
Shank Form Reduced Shank (with square drive)
Max Cut Depth 1xD
Tap Type Straight Flute
Nut Tolerance ISO 2 / 6H
