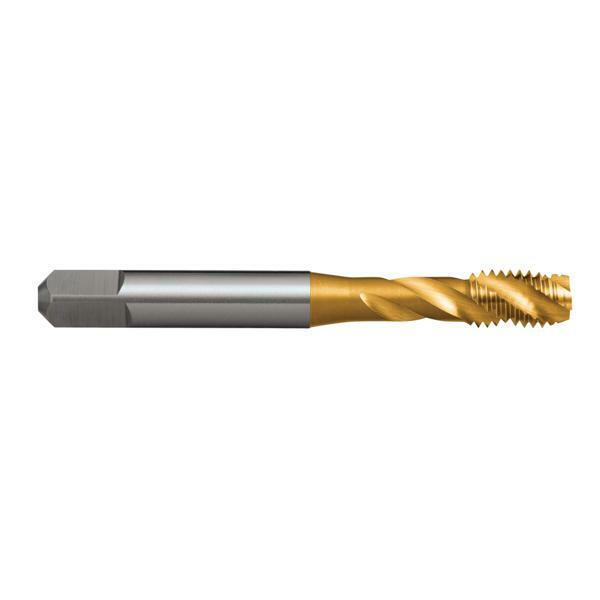

Sutton T398 Metric Spiral Flute Tap - Bottoming - Premium HSS Tinite - Sutton Tools

Description

Features

Form C / 3 x P General purpose use
Suitable for materials up to 1000N/mm2
Blind holes
Depths up to approx. 2.5 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: ISO529
Thread Form: ISO Metric Coarse (M)
Lead: ISO 2 / 6H

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Specifications

AIMS SKU A0014966

Brand Sutton Tools

Model Number T3980400

Barcode Number 9311963066790

Shank (mm) 4

L1 (mm) 53

Drill Size (mm) 3.3

L3 (mm) 18

Sq 3.15

Diameter (metric) M4

L2 (mm) 7

L4 (mm) 6

z 3

Group Code T398
Thread Form ISO Metric Coarse (M)
System of Measurement ISO529
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Titanium Nitride (TiN)
Lead ISO 2 / 6H
Helix Angle R40
Application N (for normal general purpose type materials)
Tap Type Spiral Flute
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 2.5xD
