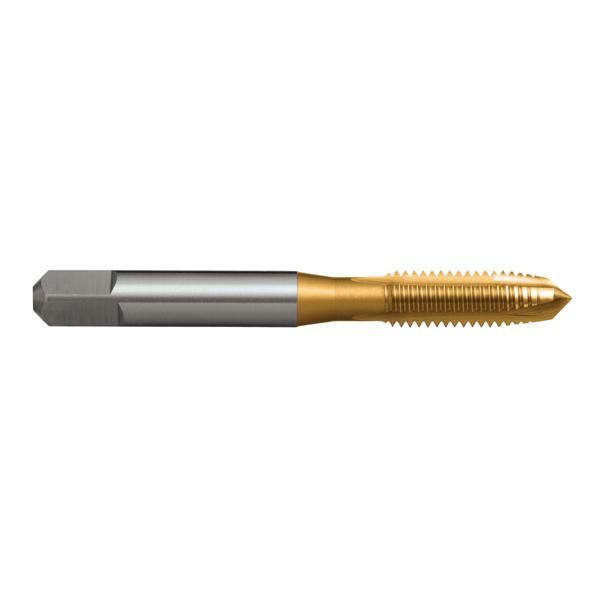

Sutton T408 Metric Fine Spiral Point Tap - Premium HSS Tinite - Sutton Tools

Description

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through holes
Depths up to approx. 3 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE V3)
Finish: Titanium Nitride (TiN) 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: ISO529
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Specifications

AIMS SKU A0015086

Brand Sutton Tools

Model Number T4081006

Barcode Number 9311963107141

Shank (mm) 10

L1 (mm) 80

L2 (mm) 24

L3 (mm) 34

Diameter (metric) MF10

Drill Size (mm) 8.8

L4 (mm) 11

Sq 3

Group Code T408
System of Measurement ISO529
Thread Form ISO Metric Fine (MF)
Material Premium Grade High Speed Steel (HSSE V3)
Finish Titanium Nitride (TiN)
Lead Form B / 4.5 x P
Application N (for normal general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Tap Type Spiral Point (Gun)
Nut Tolerance ISO 2 / 6H
