Specifications

AIMS SKU A0015398
Brand Sutton Tools
Model Number T4390483
Barcode Number 9311963073484
Diameter (inch) #10
TPI 32
Shank (mm) 5
L1 (mm) 58
L2 (mm) 16
L3 (mm) 22
z 3
Drill Size (mm) 4.1
L4 (mm) 7
Square Size (mm) 4
• Group Code T439
• System of Measurement ISO529
• Thread Form UNF
• Material Premium Grade High Speed Steel (HSSE-V3)
• Finish Bright
• Lead Form B / 4.5 x P
• Application N (for normal general purpose type materials)
• Shank Form Reinforced Shank (with square drive)
• Max Cut Depth 3xD

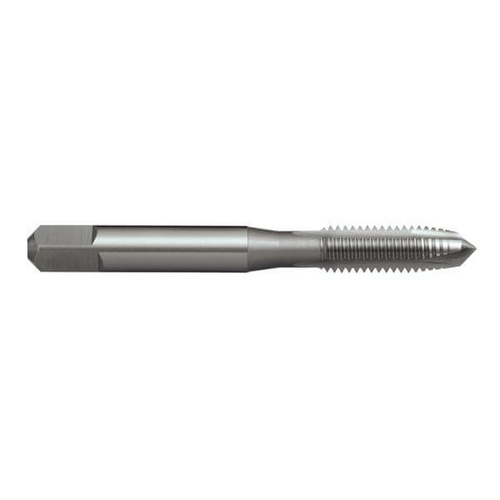

• Tap Type Spiral Point (Gun)
• Nut Tolerance 2B
