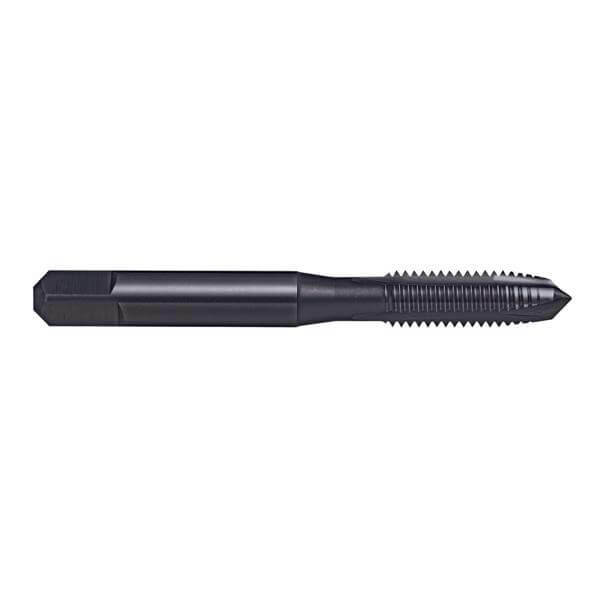

Sutton T440 UNF Spiral Point Tap - Premium HSS Blue - Sutton Tools

Description

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through holes
Depths up to approx. 3 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: ISO529
Thread Form: UNF
Nut Tolerance: 2B
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications

AIMS SKU A0015406

Brand Sutton Tools

Model Number T4400483

Barcode Number 9311963007939

Diameter (inch) #10

TPI 32

Shank (mm) 5

L1 (mm) 58

L2 (mm) 19

L3 (mm) 22

z 3

Drill Size (mm) 4.1

L4 (mm) 7

Square Size (mm) 4

Group Code T440
System of Measurement ISO529
Thread Form UNF
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Steam Oxide (Blue)
Lead Form B / 4.5 x P
Application N (for normal general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Point (Gun)
Nut Tolerance 2B
