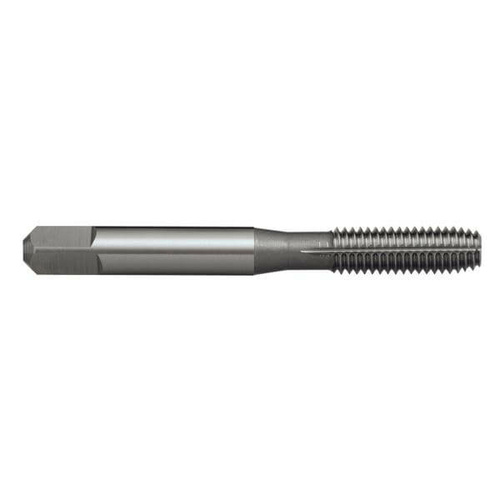

Sutton T444 UNF Thread Forming Tap - Bottoming - Short - Premium HSS - Sutton Tools

Description

Features

For cold forming of threads in materials with good flow characteristics
Through or Blind holes
Depths up to approx. 1.5 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Fluteless - Single Coolant Groove
Standard: ISO529
Thread Form: UNF
Nut Tolerance: 2B
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications

AIMS SKU A0015439

Brand Sutton Tools

Model Number T4440794

Barcode Number 9311963348391

Diameter (inch) 5/16

TPI 24

Shank (mm) 8

L1 (mm) 72

L2 (mm) 13

L3 (mm) 30

Drill Size (mm) 6.9

L4 (mm) 8

Square Size (mm) 6.3

Group Code T444
System of Measurement ISO529
Thread Form UNF
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Bright
Lead Form C / 3 x P
Application N (for normal general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 1.5xD
Tap Type Fluteless - Single Coolant Groove
Nut Tolerance 2B
