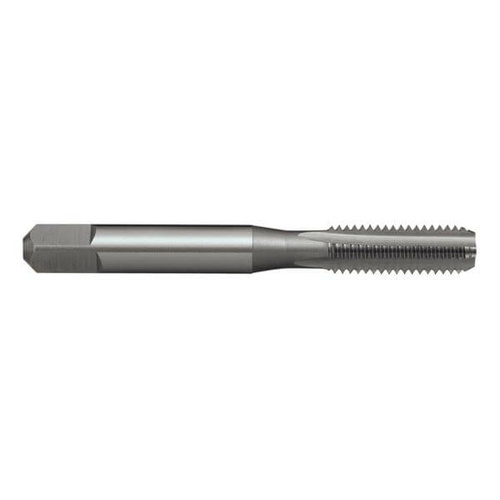

Sutton T4560794 BSW 5/16 x 18 Straight Flute Tap Bottoming Left Hand HSS

Description

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: High Speed Steel (HSS)
Finish: Bright
Max Cut Depth: 1xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: ISO529
Thread Form: British Standard Whitworth 55° (BSW)
Nut Tolerance: Z3 LH Medium
Lead: Bottoming

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications

AIMS SKU A0015568

Brand Sutton Tools

Model Number T4560794

Barcode Number 9311963348278

Diameter (inch) 5/16

TPI 18

Shank (mm) 8

L1 (mm) 72

L2 (mm) 22

L3 (mm) 30

z 4

Drill Size (mm) 6.5

L4 (mm) 9

Square Size (mm) 6.3

Group Code T456
System of Measurement ISO529
Thread Form British Standard Whitworth 55° (BSW)
Material High Speed Steel (HSS)
Finish Bright
Lead Bottoming
Application N (for normal general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 1xD
Tap Type Straight Flute
Nut Tolerance Z3 LH Medium
