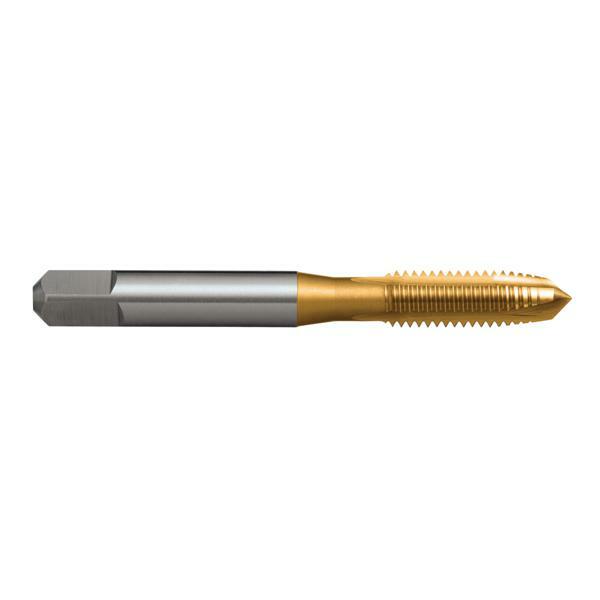

Sutton T459 BSW Spiral Point Tap - Premium HSS Tinite - Sutton Tools

Description

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through holes
Depths up to approx. 3 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN) 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: ISO529
Thread Form: British Standard Whitworth 55° (BSW)
Nut Tolerance: Z3 Medium
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Specifications

AIMS SKU A0015598

Brand Sutton Tools

Model Number T4590397

Barcode Number 9311963066738

Diameter (inch) 5/32

TPI 32

Shank (mm) 4

L1 (mm) 53

L2 (mm) 17

L3 (mm) 17

z 3

Drill Size (mm) 3.2

L4 (mm) 6

Sq 3.15

Group Code T459
System of Measurement ISO529
Thread Form British Standard Whitworth 55° (BSW)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Titanium Nitride (TiN)
Lead Form B / 4.5 x P
Application N (for normal general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Tap Type Spiral Point (Gun)
Nut Tolerance Z3 Medium
