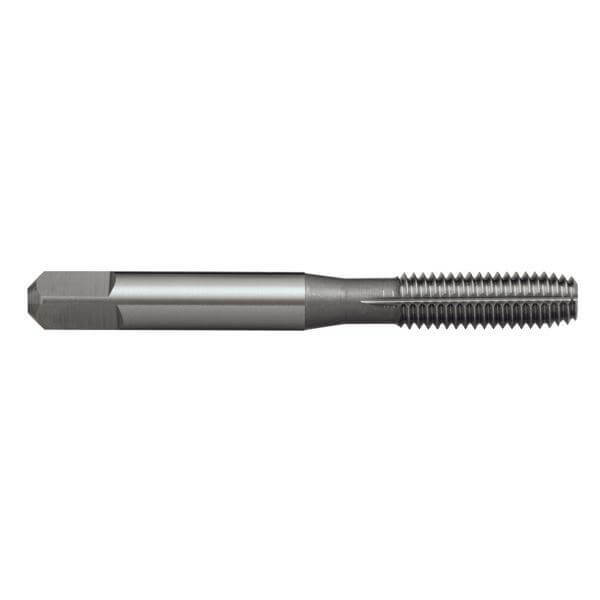

Sutton T463 BSW Thread Forming Tap - Bottoming - Short - Premium HSS - Sutton Tools

Description

Features

For cold forming of threads in materials with good flow characteristics
Through or Blind holes
Depths up to approx. 1.5 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Fluteless - Single Coolant Groove
Standard: ISO529
Thread Form: British Standard Whitworth 55° (BSW)
Nut Tolerance: Z3 Medium
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications

AIMS SKU A0015632

Brand Sutton Tools

Model Number T4630397

Barcode Number 9311963008578

Diameter (inch) 5/32

TPI 32

Shank (mm) 4

L1 (mm) 53

L2 (mm) 17

L3 (mm) 17

Drill Size (mm) 3.6

L4 (mm) 6

Square Size (mm) 3.15

Group Code T463
System of Measurement ISO529
Thread Form British Standard Whitworth 55° (BSW)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Bright
Lead Form C / 3 x P
Application N (for normal general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 1.5xD
Tap Type Fluteless - Single Coolant Groove
Nut Tolerance Z3 Medium
