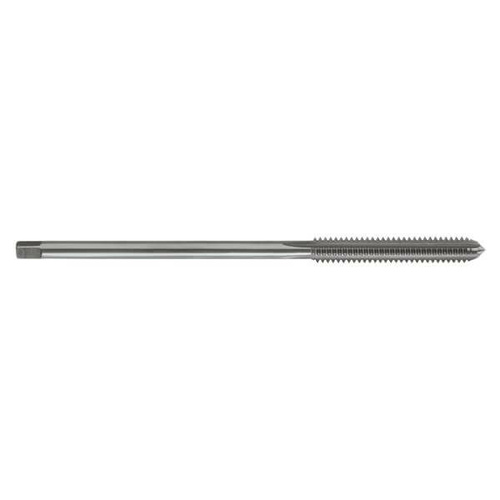

Sutton T4650794 BSW 5/16 x 18 Machine Nut Tap Bottoming Long Shank HSS

Description

Features

Suited to long reach applications
Suitable for materials up to 1000N/mm2
Through holes
Depths up to approx. 2 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: High Speed Steel (HSS)
Finish: Bright
Max Cut Depth: 2xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Straight Flute
Standard: BS949
Thread Form: British Standard Whitworth 55° (BSW)
Nut Tolerance: Z3 Medium
Lead: Bottoming

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications

AIMS SKU A0015640

Brand Sutton Tools

Model Number T4650794

Barcode Number 9311963348438

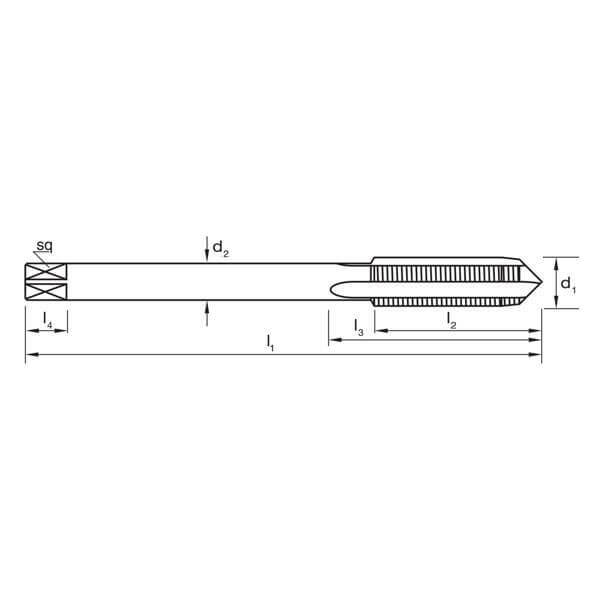

Diameter (inch) 5/16

TPI 18

Shank (mm) 6

L1 (mm) 125

L2 (mm) 43

z 4

Drill Size (mm) 6.5

L4 (mm) 7

Sq 4.5

Group Code T465
System of Measurement BS949
Thread Form British Standard Whitworth 55° (BSW)
Material High Speed Steel (HSS)
Finish Bright
Lead Bottoming
Application N (for normal general purpose type materials)
Shank Form Reduced Shank (with square drive)
Max Cut Depth 2xD
Tap Type Straight Flute
Nut Tolerance Z3 Medium
