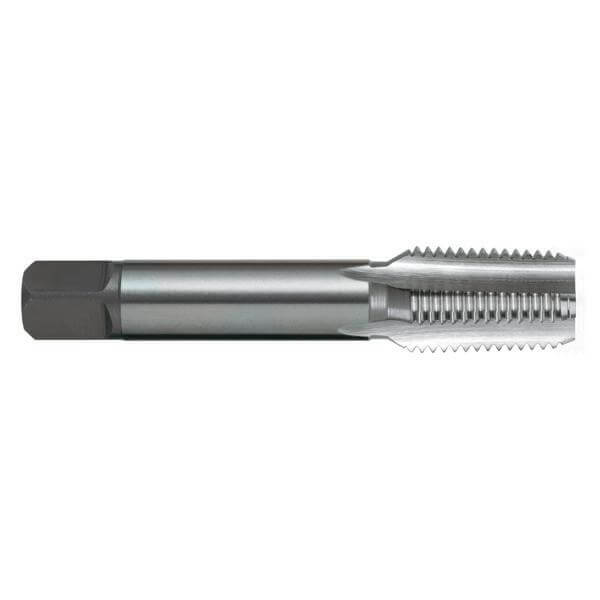

Sutton T4750973 BSPT 1/8 x 28 Straight Flute Tap - Bottoming - Rc - HSS

Description

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Taper pipe reamer recommended prior to tapping Rc (BSPT) thread forms

Specifications

Designation: N (for normal general purpose type materials)
Material: High Speed Steel (HSS)
Finish: Bright
Max Cut Depth: 1xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Straight Flute
Standard: ISO2284
Thread Form: ISO Rc Taper Series 1:16 - 55° (BSPT)
Nut Tolerance: To Suit
Lead: Bottoming

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications

AIMS SKU A0015729

Brand Sutton Tools

Model Number T4750973

Barcode Number 9311963108452

Diameter (inch) 1/8

TPI 28

Shank (mm) 8

L1 (mm) 59

L2 (mm) 15

z 4

Drill Size (mm) 8.4

L4 (mm) 9

Sq 6.3

Group Code T475
System of Measurement ISO2284
Thread Form ISO Rc Taper Series 1:16 - 55° (BSPT)
Material High Speed Steel (HSS)
Finish Bright
Lead Bottoming
Application N (for normal general purpose type materials)
Shank Form Reduced Shank (with square drive)
Max Cut Depth 1xD
Tap Type Straight Flute
Nut Tolerance To Suit
