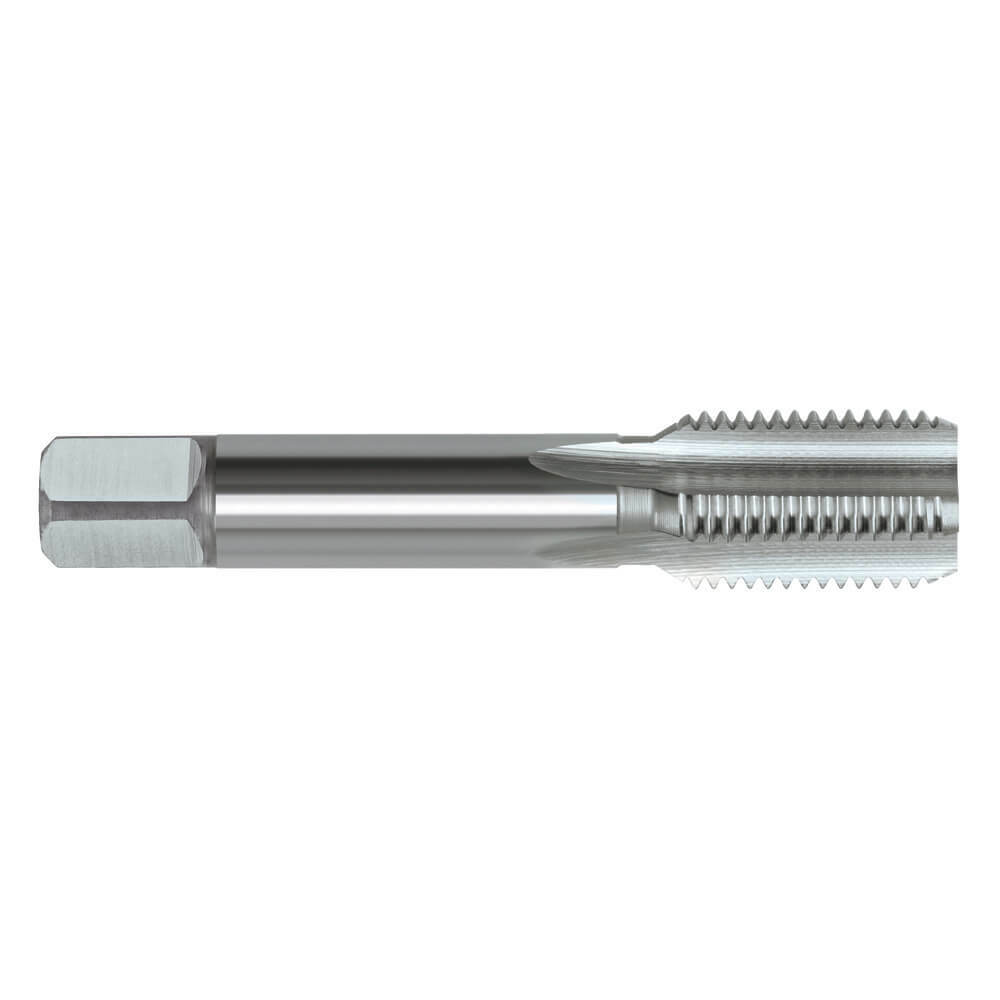

Sutton T4781250 Pg Pg7 x 20 Straight Flute Tap - Bottoming - HSS

Description

Features

General Purpose use for materials up to approx. 1000 N/mm2
Through & blind holes
Suitable for both hand and machine operations

Specifications

Designation: N (for normal general purpose type materials)
Material: High Speed Steel (HSS)
Finish: Bright
Max Cut Depth: 1xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Straight Flute
Standard: ISO529
Thread Form: Pg – Steel Conduit (Armour Pipe)
Nut Tolerance: To Suit
Lead: Bottoming

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications

AIMS SKU A0015751

Brand Sutton Tools

Model Number T4781250

Barcode Number 9311963348704

TPI 20

Shank (mm) 9

L1 (mm) 89

Diameter Pg7

L2 (mm) 29

z 4

Drill Size (mm) 11.3

L4 (mm) 10

Sq 7.1

Group Code T478
System of Measurement ISO529
Thread Form Pg – Steel Conduit (Armour Pipe)
Material High Speed Steel (HSS)
Finish Bright
Lead Bottoming
Application N (for normal general purpose type materials)
Shank Form Reduced Shank (with square drive)
Max Cut Depth 1xD
Tap Type Straight Flute
Nut Tolerance To Suit
