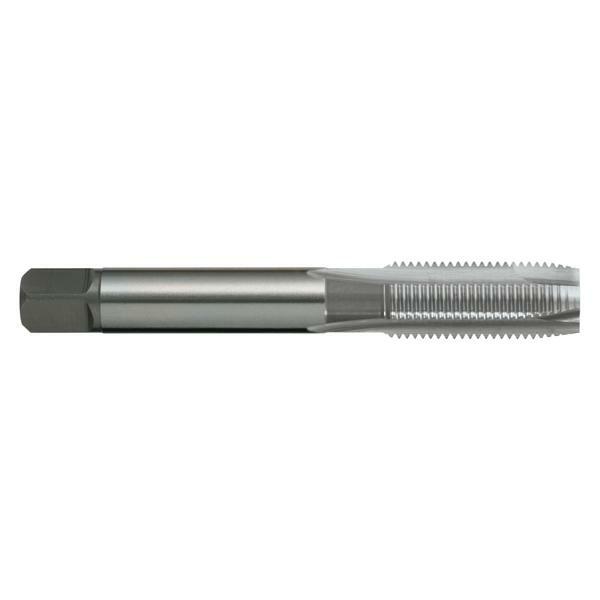

Sutton T484 G-BSPF Spiral Point Tap - HSS - Sutton Tools

Description

Features

Suitable for materials up to 1000N/mm2
Through & blind holes
Depths up to approx. 1 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: High Speed Steel (HSS)
Finish: Bright
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: ISO529
Thread Form: ISO G Parallel Series 55° (G-BSPF)
Nut Tolerance: Z3
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications

AIMS SKU A0015803

Brand Sutton Tools

Model Number T4840973

Barcode Number 9311963348544

TPI 28

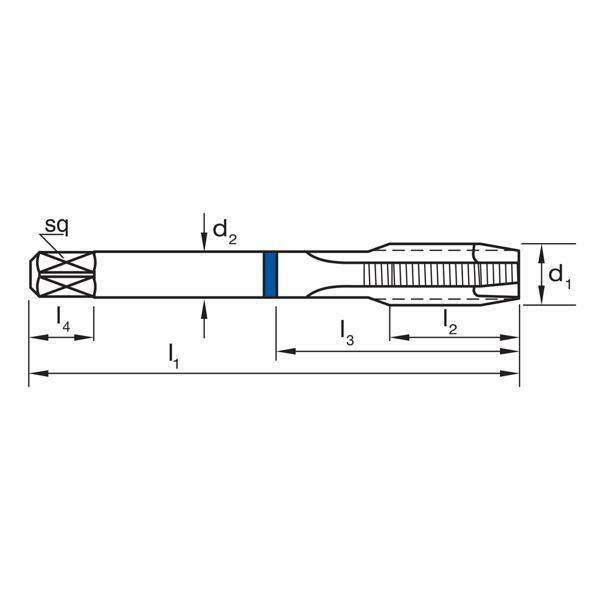

Shank (mm) 10

L1 (mm) 80

Diameter G1/8

L2 (mm) 24

L3 (mm) 33

z 3

Drill Size (mm) 8.8

L4 (mm) 11

Square Size (mm) 8

Group Code T484
System of Measurement ISO529
Thread Form ISO G Parallel Series 55° (G-BSPF)
Material High Speed Steel (HSS)
Finish Bright
Lead Form B / 4.5 x P
Application N (for normal general purpose type materials)
Shank Form Reduced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Point (Gun)
Nut Tolerance Z3
