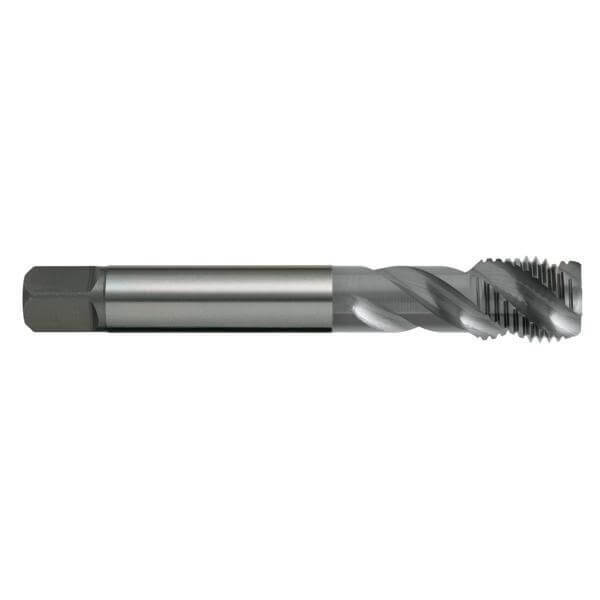

Sutton T485 G-BSPF Spiral Flute Tap - HSS - Sutton Tools

Description

Features

Suitable for materials up to 1000N/mm2
Through & blind holes
Depths up to approx. 1 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: High Speed Steel (HSS)
Finish: Bright
Max Cut Depth: 2.5xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: ISO529
Thread Form: ISO G Parallel Series 55° (G-BSPF)
Nut Tolerance: Z3
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications

AIMS SKU A0015809

Brand Sutton Tools

Model Number T4851316

Barcode Number 9311963348506

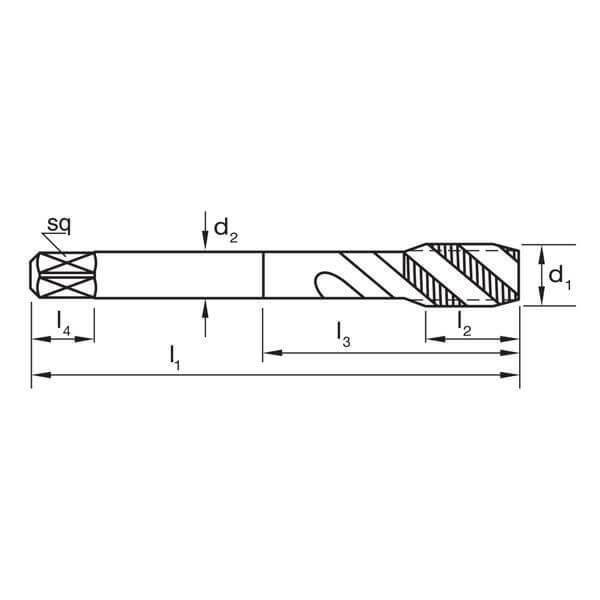

TPI 19

Shank (mm) 11.2

L1 (mm) 95

Diameter G1/4

L2 (mm) 30

z 3

Drill Size (mm) 11.8

L4 (mm) 12

Square Size (mm) 9

Group Code T485
System of Measurement ISO529
Thread Form ISO G Parallel Series 55° (G-BSPF)
Material High Speed Steel (HSS)
Finish Bright
Lead Form C / 3 x P
Helix Angle R40
Application N (for normal general purpose type materials)
Shank Form Reduced Shank (with square drive)
Max Cut Depth 2.5xD
Tap Type Spiral Flute
Nut Tolerance Z3
