Specifications

AIMS SKU A0131404
Brand Sutton Tools
Model Number T5040260
Lead 2.5 x P

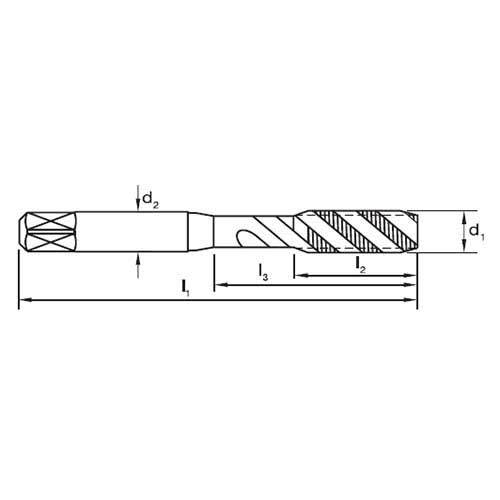

L1 (mm) 44
L2 (mm) 14
L3 (mm) -
Drill Size (mm) 2.15
Square Size (mm) 2.5
Geometry R40
Shank d2 (mm) 3
Flute 2
Colour Ring & Application N
Diameter Size d1 (mm) M2.6
Pitch Size (mm) 0.45
Limit P2

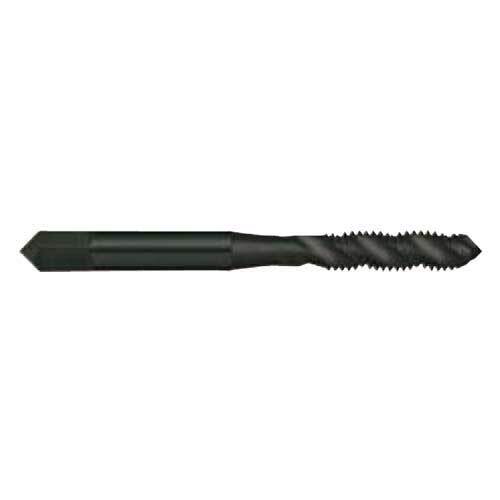

• Type Spiral Flute Tap
• Material HSSE
• Finish Steam Oxide (Blu)
• Style 1
• Group Code T504
