Specifications
- AIMS SKU A0131420
- Brand Sutton Tools
- Model Number T5150100
- Barcode Number 9311963135335
- Lead 2 x P

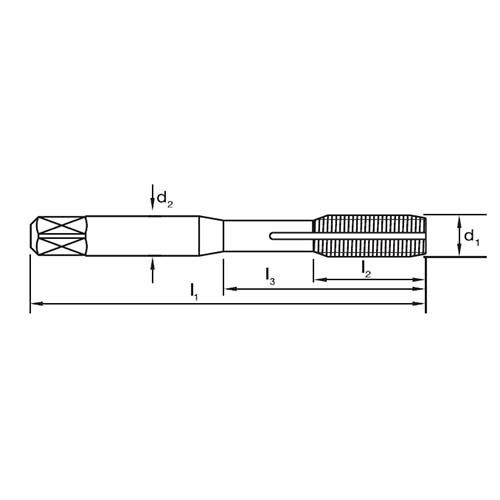

- L1 (mm) 30
- L2 (mm) 7
- L3 (mm) -
- Square Size (mm) 2.5
- Geometry 1 Coolant Groove M3+
- Shank d2 (mm) 3
- Flute 4
- Colour Ring & Application Medium Production
- Diameter Size d1 (mm) M1
- Pitch Size (mm) 0.25
- Limit GH4
- Tap Hole Min/max 0.86-0.90
- Type Thread Forming Tap
- Material HSS Co.8
- Finish Titanium Nitride (TiN)
- Style 1
- Group Code T515
SKU: A0131420

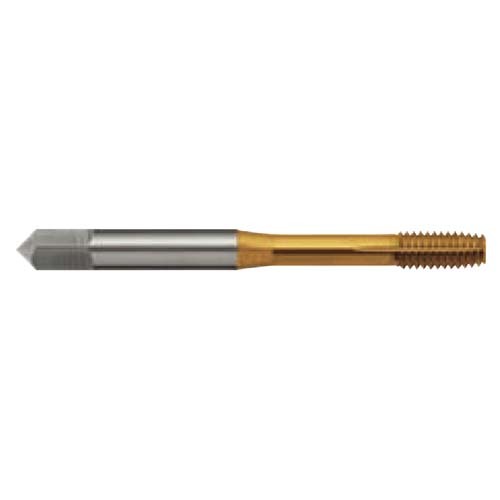

Sutton T5150100 Metric M1 x 0.25 Thread Forming Tap Single Coolant Groove B Lead
Sutton T515 Thread Forming Tap Single Coolant - M - B Le
$206.55
