Specifications

AIMS SKU A0131590
Brand Sutton Tools
Model Number T6391000
Barcode Number 9311963347202

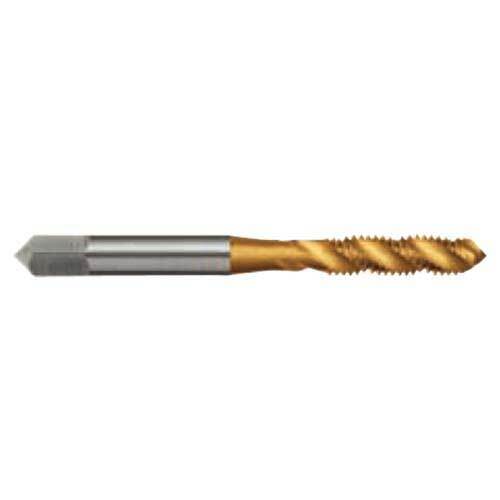

Type Spiral Flute Tap
Thread Form Metric
Material HSSE-V3
Finish Titanium Nitride (TiN)
Lead 2.5 x P

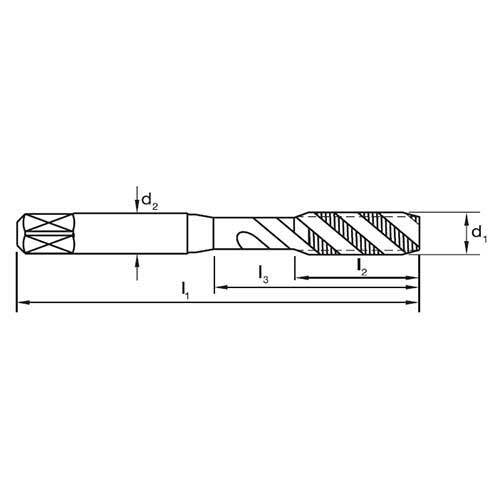

L1 (mm) 75
Limit P2
Pitch Size (mm) 1.5
Diameter Size d1 (mm) M10
Colour Ring & Application N
Flute 3
Shank d2 (mm) 7
Geometry R40
Group Code T639
Style 3
Square Size (mm) 5.5
Drill Size (mm) 8.8
L3 (mm) -
L2 (mm) 24
