Specifications

AIMS SKU A0015844
Brand Sutton Tools
Model Number T6541206
Barcode Number 9311963412580

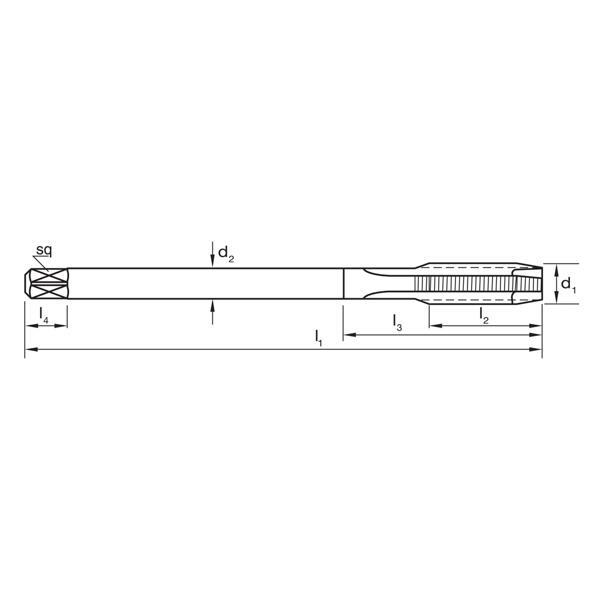

Shank (mm) 9
L1 (mm) 100
Pitch (mm) 1.25
L2 (mm) 22
z 3
Diameter (metric) MF12
Drill Size (mm) 10.8
L4 (mm) 10
Square Size (mm) 7
• Group Code T654
• Thread Form ISO Metric Fine (MF)
• Material Premium Grade High Speed Steel (HSSE-V3)
• Finish Steam Oxide (Blue)
• Lead Form B / 4.5 x P
• Application NH
• Shank Form Reduced Shank (with square drive)
• Max Cut Depth 3xD
• Tap Type Spiral Point (Gun) DIN374
• Nut Tolerance ISO 2 / 6H
