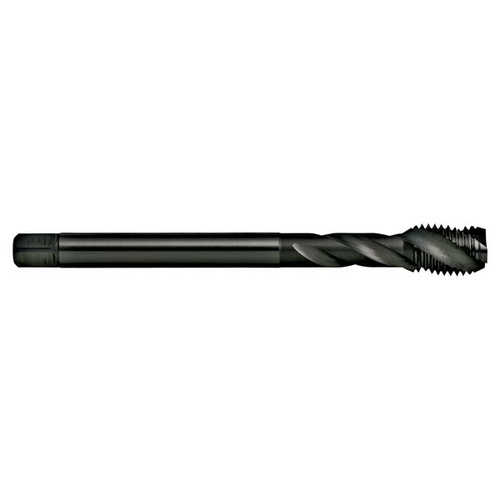

Sutton T655 Metric Fine Spiral Flute Tap - R40 NH - Premium HSS Blue - Sutton Tools

Description

Features

Suitable for harder short chipping materials up to 42 HRC
Blind holes
Suitable for machine operations
Depths up to approx. 2.5 x d1

Specifications

Designation: NH
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: DIN374
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Specifications

AIMS SKU A0015845

Brand Sutton Tools

Model Number T6550604

Barcode Number 9311963412740

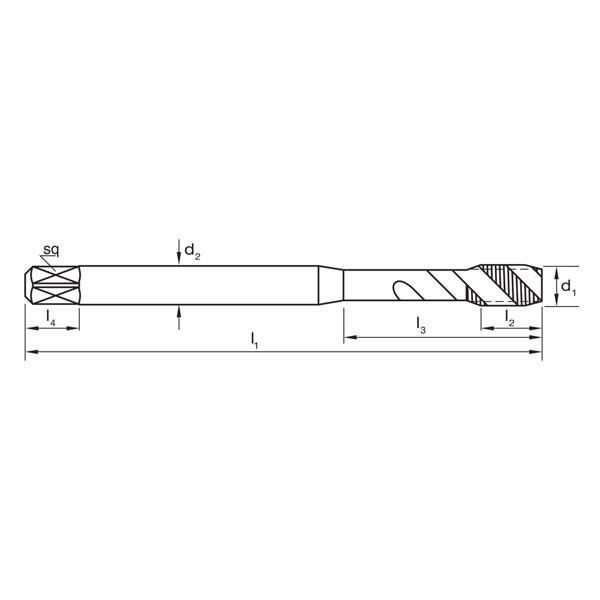

Shank (mm) 4.5

L1 (mm) 80

Pitch (mm) 0.75

L2 (mm) 8

z 3

Diameter (metric) MF6

Drill Size (mm) 5.3

L4 (mm) 6

Square Size (mm) 3.4

Group Code T655
System of Measurement DIN374
Thread Form ISO Metric Fine (MF)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Steam Oxide (Blue)
Lead Form C / 3 x P
Helix Angle R40
Application NH
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 2.5xD
Tap Type Spiral Flute
Nut Tolerance ISO 2 / 6H
