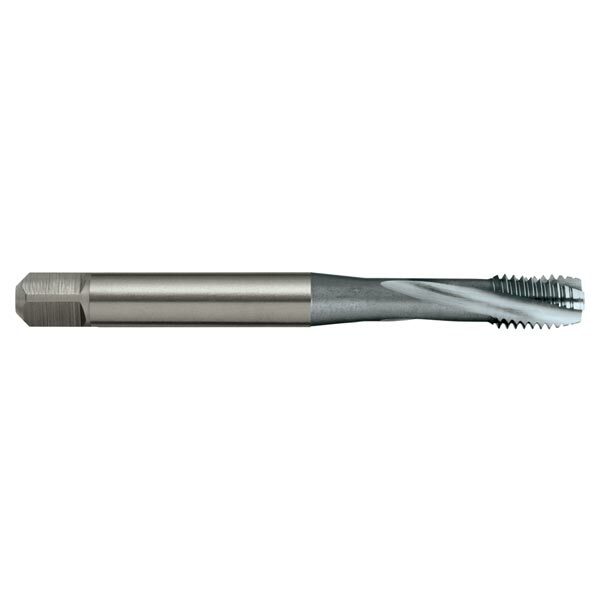

Sutton T667 UNC Spiral Flute Tap - R15 H - Cobalt Steel TiCN - Sutton Tools

Description

Features

Use in harder short chipping materials up to 45 HRc
Blind holes
Suitable for machine operations
Depths up to approx. 1.5 x d1

Specifications

Designation: H (for hard materials forming short chips)
Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R15
X: als
Type: Spiral Flute
Standard: DIN2184-1
Thread Form: UNC
Nut Tolerance: 2BX
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Hardened & Tempered
Steel - Corrosion resistant & cast - Martensitic: Quenched & Tempered
Cast Iron, Grey (GG) - Ferritic / Pearlitic
Cast Iron, Nodular (GGG) – Ferritic/Pearlitic
Cast Iron, Malleable – Ferritic/Pearlitic
Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
Titanium & Titanium alloys - Alpha / Beta alloys: Age Hardened
Titanium & Titanium alloys - Beta alloys: Age Hardened
Cast Iron - Chilled: Cast

Specifications

AIMS SKU A0015858

Brand Sutton Tools

Model Number T6670635

Barcode Number 9311963452708

Diameter (inch) 1/4

TPI 20

Shank (mm) 7

L1 (mm) 80

L2 (mm) 10

L3 (mm) 30

z 3

Drill Size (mm) 5.1

L4 (mm) 8

Square Size (mm) 5.5

Group Code T667
System of Measurement DIN2184-1
Thread Form UNC
Material High Speed Steel Cobalt (PM-HSS Co8%)
Finish Titanium Carbonitride (TiCN)
Lead Form C / 3 x P
Helix Angle R15
Application H (for hard materials forming short chips)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 1.5xD
Tap Type Spiral Flute
Nut Tolerance 2BX
