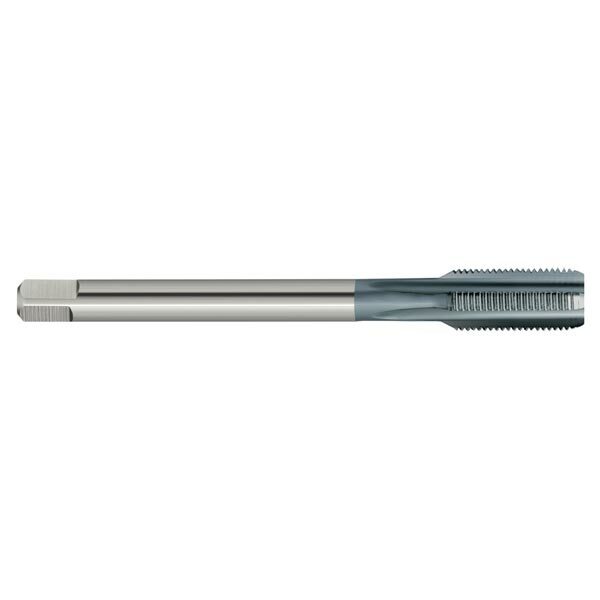

Sutton T669 Metric Fine Straight Flute Tap - Cobalt Steel TiCN - Sutton Tools

Description

Features

Premium design for cast aluminium and cast iron (Short Chipping)
Through & blind holes
Depths up to approx. 1.5 x d
Axial coolant duct available

Specifications

Designation: DC
Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 1.5xD
Shank Form: Reduced Shank (with square drive)
X: ru
Type: Straight Flute
Standard: DIN374
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: 6HX
Lead: Form E / 1.5 x P

Applications

Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable

Specifications

AIMS SKU A0015873

Brand Sutton Tools

Model Number T6691006

Barcode Number 9311963508597

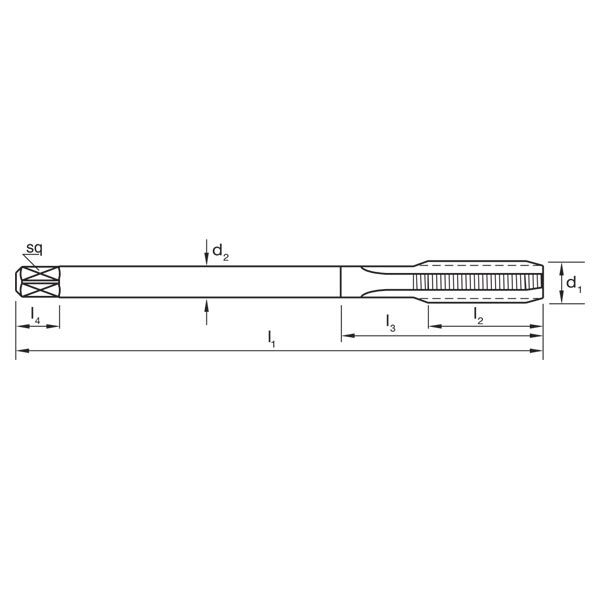

Shank (mm) 7

L1 (mm) 100

Pitch (mm) 1.25

L2 (mm) 24

z 4

Diameter (metric) MF10

Drill Size (mm) 8.8

L4 (mm) 8

Square Size (mm) 5.5

Group Code T669
System of Measurement DIN374
Thread Form ISO Metric Fine (MF)
Material High Speed Steel Cobalt (PM-HSS Co8%)
Finish Titanium Carbonitride (TiCN)
Lead Form E / 1.5 x P
Application DC
Shank Form Reduced Shank (with square drive)
Max Cut Depth 1.5xD
Tap Type Straight Flute
Nut Tolerance 6HX
