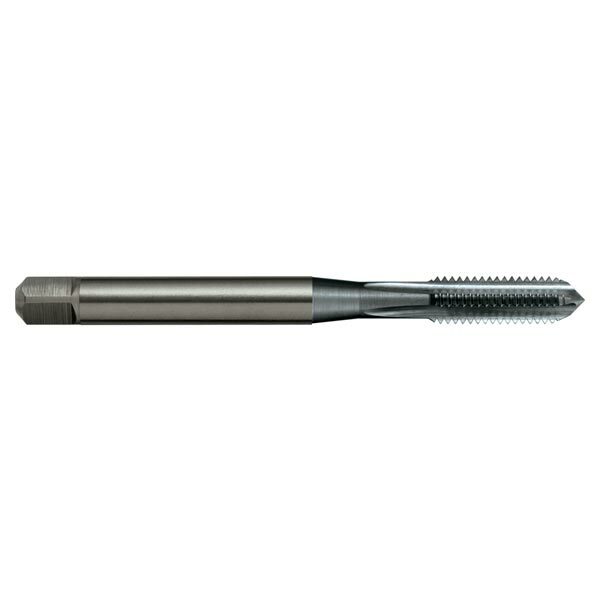

Sutton T670 Metric Straight Flute Tap - Carbide TiCN - Sutton Tools

Description

Features

VHM
for use in Al >10% Si & cast iron (GGG)
Through & blind holes
Depths up to 3 x d1

Specifications

Designation: GGG (for cast iron materials)
Material: Sub-Micron Grade Solid Carbide (VHM-ISO K15-K30)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6H
Lead: Form C / 3 x P

Applications

Cast Iron, Grey (GG) - Ferritic / Pearlitic
Cast Iron, Grey (GG) – Pearlitic
Cast Iron, Nodular (GGG) – Ferritic
Cast Iron, Nodular (GGG) – Pearlitic
Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable
Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
Cast Iron - Chilled: Cast

Specifications

AIMS SKU A0015878

Brand Sutton Tools

Model Number T6700800

Barcode Number 9311963544472

Shank (mm) 8

L1 (mm) 90

L2 (mm) 22

L3 (mm) 35

z 4

Diameter (metric) M8

Drill Size (mm) 6.9

L4 (mm) 9

Square Size (mm) 6.2

Group Code T670
System of Measurement DIN371
Thread Form ISO Metric Coarse (M)
Material Sub-Micron Grade Solid Carbide (VHM-ISO K15-K30)
Finish Titanium Carbonitride (TiCN)
Lead Form C / 3 x P
Application GGG (for cast iron materials)
Shank Form Reduced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Straight Flute
Nut Tolerance 6H
