Specifications

AIMS SKU A0015911
Brand Sutton Tools
Model Number T6792400
Barcode Number 9311963453330

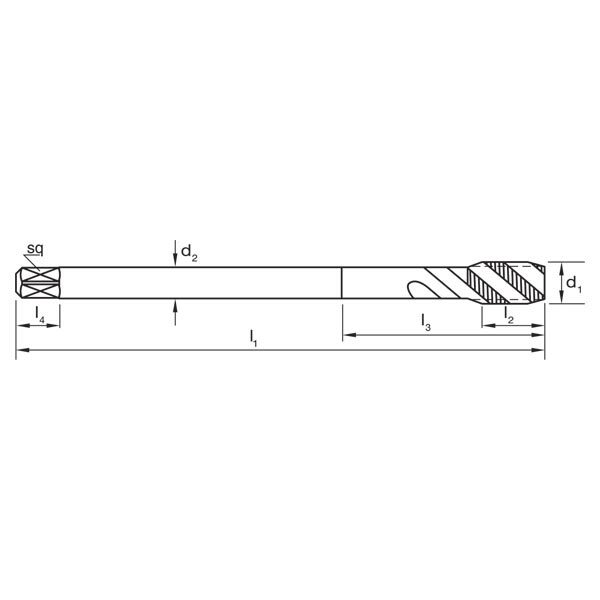

Shank (mm) 18
L1 (mm) 160
Pitch (mm) 3
L2 (mm) 30
z 4
Diameter (metric) M24
Drill Size (mm) 21
L4 (mm) 17
Square Size (mm) 14.5
• Group Code T679
• System of Measurement DIN376
• Thread Form ISO Metric Coarse (M)
• Material Vanadium Grade High Speed Steel (PM-HSSE V3)
• Finish Titanium Carbonitride (TiCN)
• Lead Form C / 3 x P
• Helix Angle R50
• Application VA (for stainless and tough steels)
• Shank Form Reduced Shank (with square drive)
• Max Cut Depth 3xD
• Tap Type Spiral Flute
• Nut Tolerance 6GX
