Specifications

AIMS SKU A0015930
Brand Sutton Tools
Model Number T6840500
Barcode Number 9311963513416

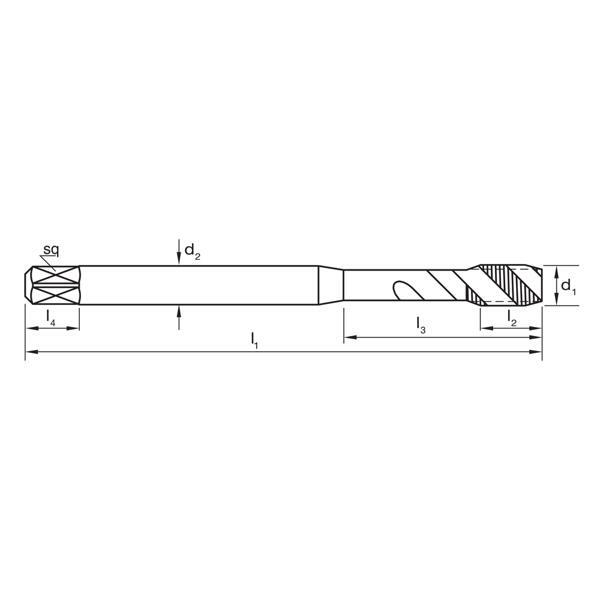

Shank (mm) 6
L1 (mm) 70
L2 (mm) 8
L3 (mm) 25
z 3
Diameter (metric) M5
Drill Size (mm) 4.2
L4 (mm) 8
Square Size (mm) 4.9
• Group Code T684
• System of Measurement DIN371
• Thread Form ISO Metric Coarse (M)
• Material Vanadium Grade High Speed Steel (PM-HSSE V3)
• Finish Hardlube
• Lead Form C / 3 x P
• Helix Angle R50
• Application UNI (for normal general purpose type materials)
• Shank Form Reinforced Shank (with square drive)
• Max Cut Depth 3xD
• Tap Type Spiral Flute
• Nut Tolerance 6HX
