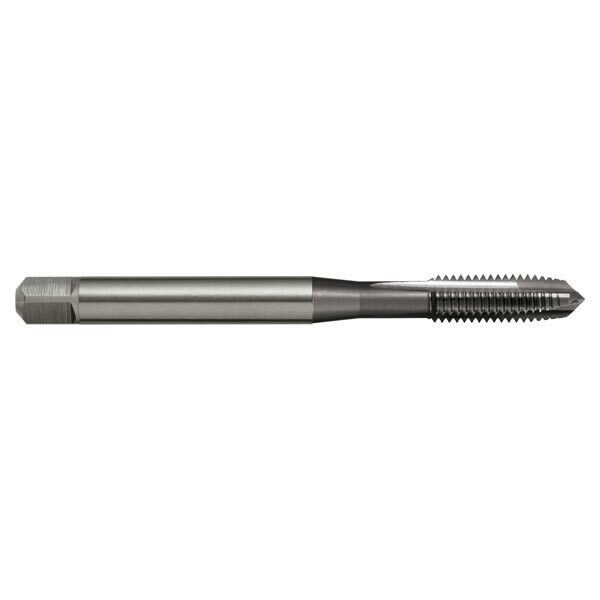

Sutton T6930351 UNC 6-32 Spiral Point Tap - Black Magic - HSSE V3 HSS

Description

Features

Universal high performance tapping
PM-HSSE V3 offers superior tool life
Use in stainless steels and high strength steels up to 850N/mm2
Through holes up to 3 x d1
Suitable for synchronous tapping in machine operations

Specifications

Designation: UNI (for normal general purpose type materials)
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Hardlube
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN2184-1
Thread Form: UNC
Nut Tolerance: 2BX
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - High alloy, cast & tool: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable

Specifications

AIMS SKU A0015994

Brand Sutton Tools

Model Number T6930351

Barcode Number 9311963550695

Diameter (inch) #6

TPI 32

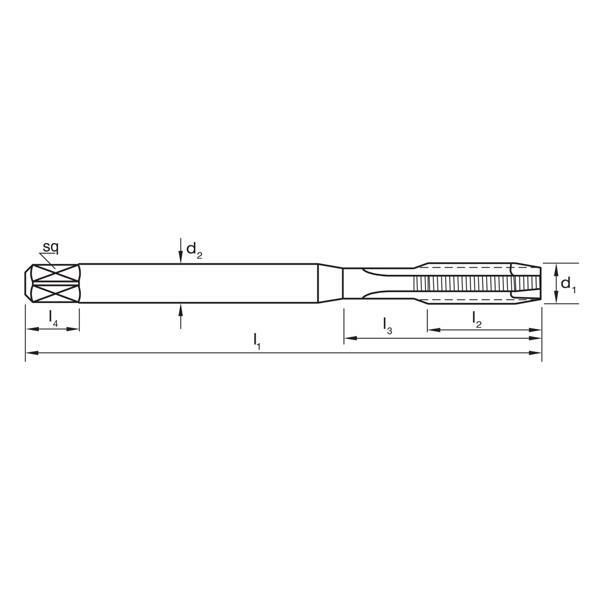

Shank (mm) 4

L1 (mm) 56

L2 (mm) 12

L3 (mm) 20

z 3

Drill Size (mm) 2.85

L4 (mm) 6

Square Size (mm) 3

Group Code T693
System of Measurement DIN2184-1
Thread Form UNC
Material Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish Hardlube
Lead Form B / 4.5 x P
Application UNI (for normal general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Point (Gun)
Nut Tolerance 2BX
