Specifications

AIMS SKU A0016022
Brand Sutton Tools
Model Number T6960351
Barcode Number 9311963550978
Diameter (inch) #6
TPI 40
Shank (mm) 4
L1 (mm) 56
L2 (mm) 6
L3 (mm) 20
z 3
Drill Size (mm) 2.9
L4 (mm) 6
Square Size (mm) 3
• Group Code T696
• System of Measurement DIN2184-1
• Thread Form UNF
• Material Vanadium Grade High Speed Steel (PM-HSSE V3)
• Finish Titanium Carbonitride (TiCN)
• Lead Form C / 3 x P
• Helix Angle R50
• Application VA (for stainless and tough steels)
• Shank Form Reinforced Shank (with square drive)
• Max Cut Depth 3xD

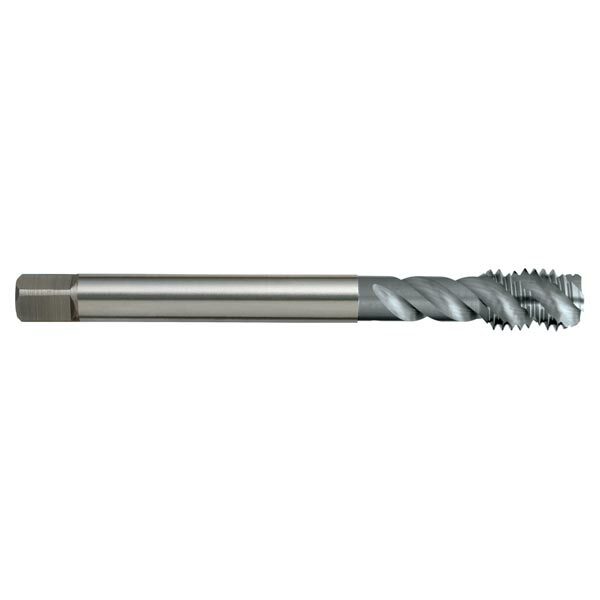

• Tap Type Spiral Flute
• Nut Tolerance 2BX
