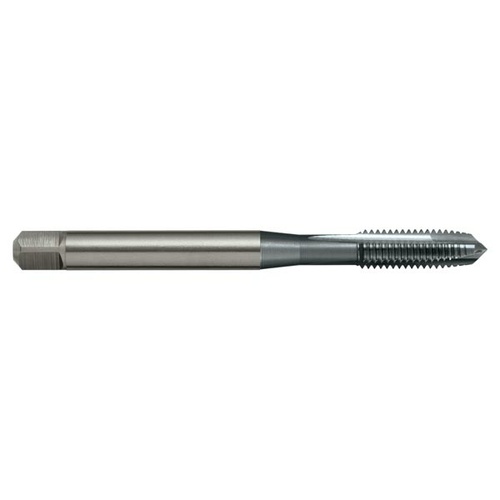

Sutton T697 UNC Spiral Point Tap - Vanadium HSS TiCN - Sutton Tools

Description

Features

PM-HSSE V3 offers superior tool life
Use in stainless steels and high strength steels up to 850N/mm2
Through holes up to 3 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN2184-1
Thread Form: UNC
Nut Tolerance: 2BX
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Stainless Steel - Precipitation Hardening
High temperature alloys - Fe based: Annealed
High temperature alloys - Fe based: Age Hardened
High temperature alloys - Ni / Co based: Annealed

Specifications

AIMS SKU A0016032

Brand Sutton Tools

Model Number T6970351

Barcode Number 9311963551074

Diameter (inch) #6

TPI 32

Shank (mm) 4

L1 (mm) 56

L2 (mm) 12

L3 (mm) 20

z 3

Drill Size (mm) 2.85

L4 (mm) 6

Square Size (mm) 3

Group Code T697
System of Measurement DIN2184-1
Thread Form UNC
Material Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish Titanium Carbonitride (TiCN)
Lead Form B / 4.5 x P
Application VA (for stainless and tough steels)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Point (Gun)
Nut Tolerance 2BX
