Specifications

AIMS SKU A0131525
Brand Sutton Tools
Model Number T7021111
Barcode Number 9311963580166
TPI 20
Lead Form B / 4.5 x P

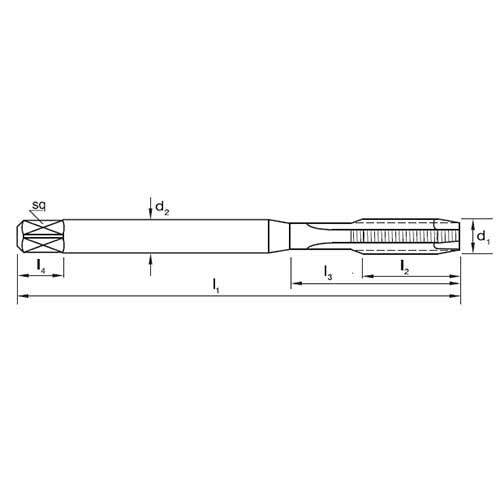

L1 (mm) 100
L4 (mm) 8
Order Multiple 1
Limit 2B
Diameter d1 (inch) 7/16
Flute 3
Shank d2 (mm) 8
X als
Sutton Designation N
Square Size (mm) 6.2
Drill Size (mm) 9.8
Nut Tolerance 2B
Max Cut Depth 3xD
L2 (mm) 24
Shank Form A
• Group Code T702
• System of Measurement DIN2184-1
• Thread Form UNF
• Material Premium Grade High Speed Steel (HSSE-V3)
• Finish Steam Oxide (Blue)
• Lead Form B / 4.5 x P
• Application N (for normal general purpose type materials)
• Shank Form Reinforced Shank (with square drive)
• Max Cut Depth 3xD

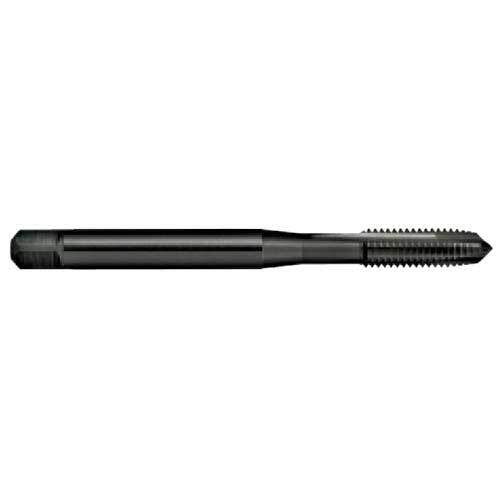

• Tap Type Spiral Point (Gun)
• Nut Tolerance 2B
