Description

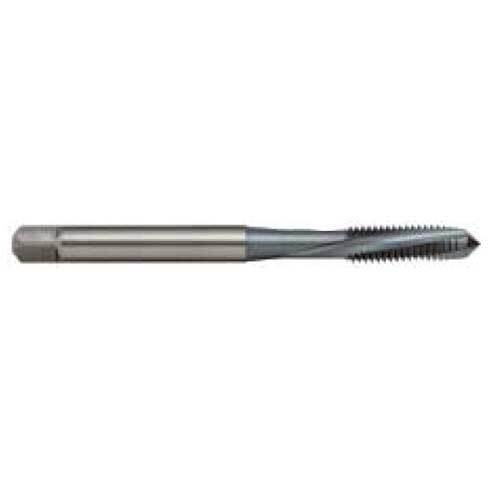

Sutton T787 Spiral Flute Tap - L12 Ti - UNJF

  • For Titanium-based alloys.
  • For duplex and super duplex stainless steels.
  • For Nickel based alloys >850N/mm2 <1150N/mm2.
  • Tight tolerances and optimized micro-finish for optimal process reliability and excellent thread quality.
  • Through holes up to approximately 1.5 x d1

Specifications

  • Group Code: T787
  • Material: PM-HSS Co
  • Surface Finish: TiCN
  • Sutton Designation: Ti
  • Geometry: L12
  • Chamfer: Form B / 4.5 x P
  • Limit & Nut Tolerance: 3BX

Applications

  • Optimal for Titanium & Titanium alloys - Alpha alloys
  • Optimal for Titanium & Titanium alloys - Alpha / Beta alloys
  • Optimal for Titanium & Titanium alloys - Beta alloys

Specifications

  • AIMS SKU A0131494
  • Brand Sutton Tools
  • Model Number T7870635
  • Barcode Number 9311963586779

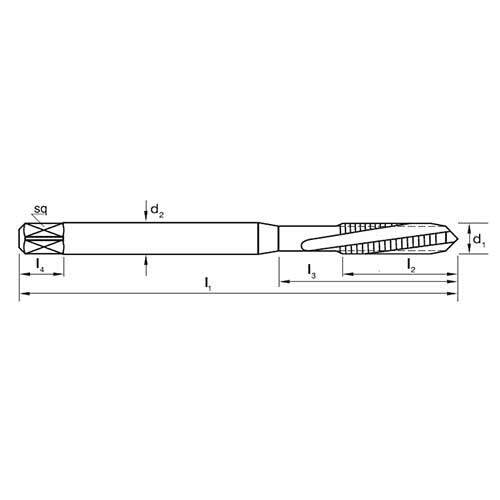

  • TPI 28
  • L1 (mm) 80
  • L2 (mm) 19
  • L3 (mm) 30
  • Drill Size (mm) 5.6
  • L4 (mm) 8
  • Square Size (mm) 5.5
  • Chamfer Form B / 4.5 x P
  • Limit & Nut Tolerance 3BX
  • Sutton Designation Ti
  • Geometry L12
  • Shank d2 (mm) 7
  • Flute 3
  • Diameter d1 (inch) 1/4
  • Type Spiral Flute Tap
  • Material PM-HSS Co
  • Finish Titanium Carbonitride (TiCN)
  • Group Code T787
SKU: A0131494

Sutton T7870635 UNJF 1/4" x 28 Spiral Flute Tap L12 Ti - PM-HSS Co

Sutton T787 Spiral Flute Tap - L12 Ti - UNJF

$120.38
