Description

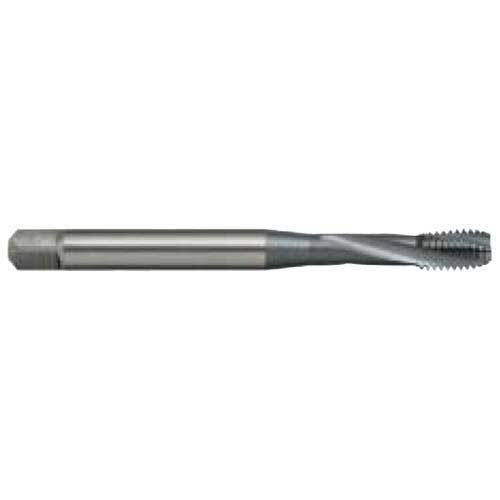

Sutton T790 Spiral Flute Tap - R15 Ti - UNJC

  • For Titanium-based alloys.
  • For duplex and super duplex stainless steels.
  • For Nickel based alloys >850N/mm2 <1150N/mm2.
  • Tight tolerances and optimized micro-finish for optimal process reliability and excellent thread quality.
  • Blind holes up to approximately 1.5 x d1.

Specifications

  • Group Code: T790
  • Material: PM-HSS Co
  • Surface Finish: TiCN
  • Sutton Designation: Ti
  • Geometry: R15
  • Chamfer: Form C / 3 x P
  • Limit & Nut Tolerance: 3BX

Applications

  • Optimal for Titanium & Titanium alloys - Alpha alloys
  • Optimal for Titanium & Titanium alloys - Alpha / Beta alloys
  • Optimal for Titanium & Titanium alloys - Beta alloys

Specifications

  • AIMS SKU A0131498
  • Brand Sutton Tools
  • Model Number T7900351
  • Barcode Number 9311963586632
  • TPI 32

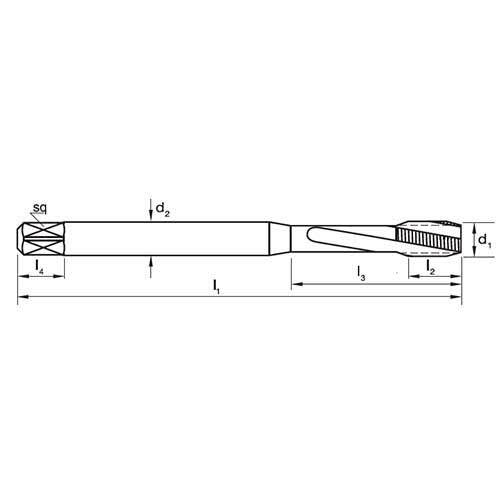

  • L1 (mm) 56
  • L2 (mm) 6
  • L3 (mm) 19
  • Drill Size (mm) 2.8
  • L4 (mm) 6
  • Square Size (mm) 3
  • Chamfer Form C / 3 x P
  • Limit & Nut Tolerance 3BX
  • Sutton Designation Ti
  • Geometry R15
  • Shank d2 (mm) 4
  • Flute 3
  • Diameter Size #6
  • Type Spiral Flute Tap
  • Material PM-HSS Co
  • Finish Titanium Carbonitride (TiCN)
  • Group Code T790
SKU: A0131498

Sutton T7900351 UNJC #6 x 32 Spiral Flute Tap R15 Ti - PM-HSS Co

Sutton T790 Spiral Flute Tap - R15 Ti - UNJC

$109.88
