Description

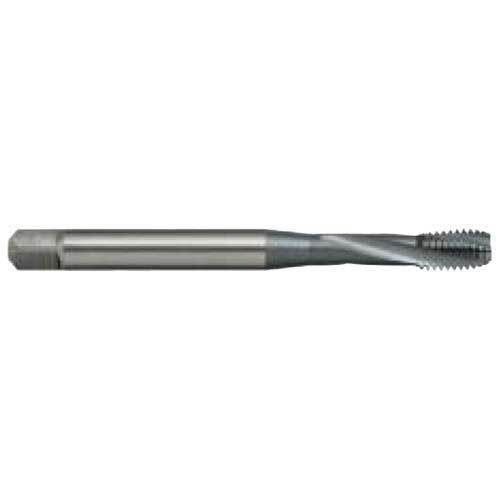

Sutton T790 Spiral Flute Tap - R15 Ti - UNJC

For Titanium-based alloys.
For duplex and super duplex stainless steel.
For Nickel based alloys >850N/mm² <1150N/mm².
Tight tolerances and optimized micro-finish for optimal process reliability and excellent thread quality.
Blind holes up to approximately 1.5 x d1.

Specifications

Group Code: T790
Material: PM-HSS Co
Surface Finish: TiCN
Sutton Designation: Ti
Geometry: R15
Chamfer: Form C / 3 x P
Limit & Nut Tolerance: 3BX

Applications

Optimal for Titanium & Titanium alloys - Alpha alloys
Optimal for Titanium & Titanium alloys - Alpha / Beta alloys
Optimal for Titanium & Titanium alloys - Beta alloys

About PM-HSS Co

Powdered metallurgy - 8% Cobalt grade of high-speed steel.
Application, Materials with hardness up to 45HRC.
The addition of cobalt provides this material with the ability to maintain its strength and hardness level when exposed to extremely high cutting temperatures.
This makes PM-HSS Co Suitable for heavy-duty tapping, in materials such as high alloyed steels to non-ferrous metals like Ni-base alloys and Ti-alloys.

Specifications

AIMS SKU A0131502

Brand Sutton Tools

Model Number T7900953

Barcode Number 9311963586687

Lead Form C / 3 x P

TPI 16

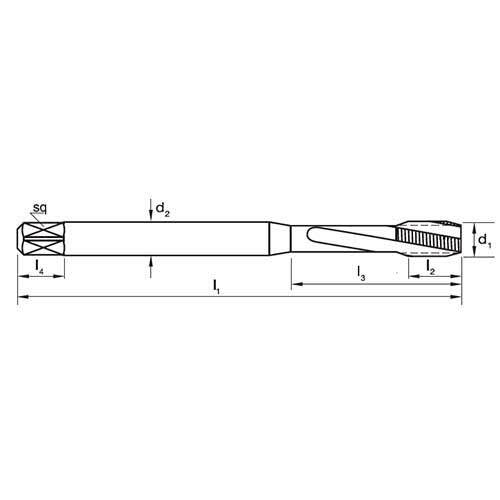

L1 (mm) 100

Helix Angle R15

Order Multiple 1

Limit 3BX

Diameter d1 (inch) 3/8

Flute 3

Shank d2 (mm) 10

X als

Sutton Designation Ti

Square Size (mm) 7

L4 (mm) 10

Drill Size (mm) 8

Nut Tolerance 3BX

L3 (mm) 35

Max Cut Depth 1.5xD

L2 (mm) 15

Shank Form A

Group Code T7900635
Barcode 9311963586663
Type Spiral Flute Tap
Material PM-HSS Co
Finish Titanium Carbonitride (TiCN)
Group Code T790
