Sutton T794 Spiral Flute Tap R10 Ni - UNJC - Sutton Tools

Description

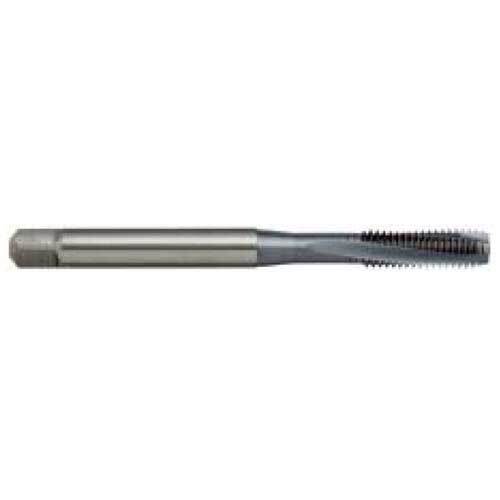

Sutton T794 Spiral Flute Tap R10 Ni - UNJC

For Nickel alloys / age-hardened super alloys >1150N/mm2.
Tight tolerances and optimized micro-finish for optimal process reliability and excellent thread quality.
Blind or through holes.

Specifications

Group Code: T794
Product: Group D0408
Material: PM-HSS Co
Surface Finish: TiCN
Sutton Designation: Ni
Geometry: R10
Chamfer Form: C / 3 x P
Limit & Nut Tolerance: 3BX

Applications

Optimal for High-temperature alloys - Ni / Co-based-350HB

Specifications

AIMS SKU A0131508

Brand Sutton Tools

Model Number T7940635

Barcode Number 9311963593272

TPI 20

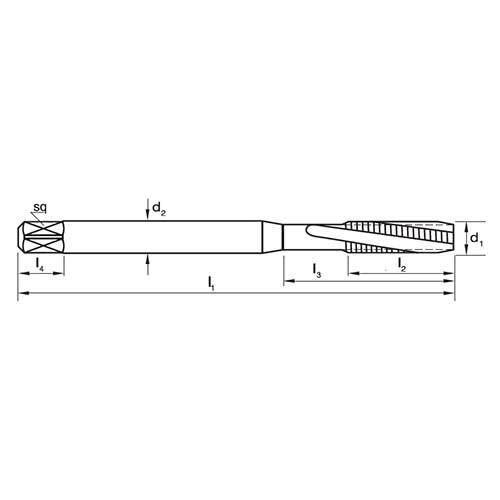

L1 (mm) 80

L2 (mm) 19

L3 (mm) 30

Drill Size (mm) 5.2

L4 (mm) 8

Square Size (mm) 5.5

Chamfer Form C / 3 x P

Limit & Nut Tolerance 3BX

Sutton Designation Ni

Geometry R10

Shank d2 (mm) 7

Flute 3

Diameter d1 (inch) 1/4

Type Spiral Flute Tap
Material PM-HSS Co
Finish Titanium Carbonitride (TiCN)
Group Code T794
