Sutton T808 Straight Flute Tap - N - Sutton Tools

Description

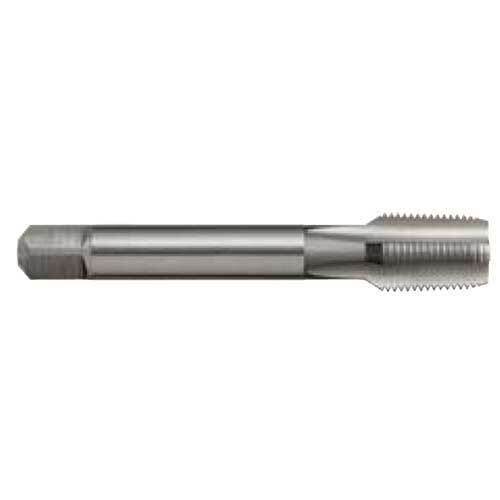

Sutton T808 Straight Flute Tap - N

Universal use.
Suitable for materials up to 1000N/mm2.
Through & blind holes

Specifications

Designation: N
Material: HSSE V3
Finish: TiCN
Max Cut Depth: 1.5xD
Shank Form: A
x: als
Type: Straight Flute
Standard: DIN5156
Thread Form: M
Nut Tolerance: To Suit
Lead: Form C / 3 x P

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)-125HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-190HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-250HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)-270HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements-180HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements-275HB
Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable-60HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable-100HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1-110HB

Specifications

AIMS SKU A0131533

Brand Sutton Tools

Model Number T8081316

Barcode Number 9311744441884

Lead Form C / 3 x P

TPI 19

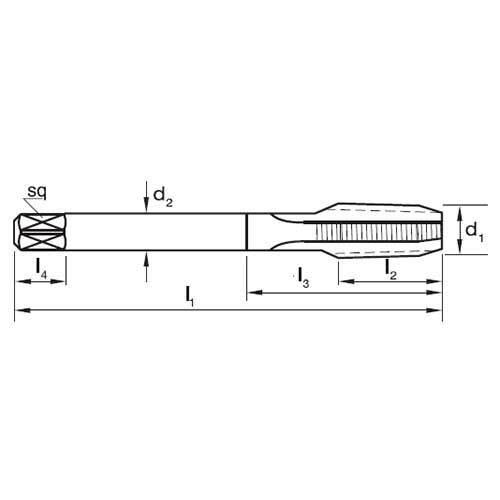

L1 (mm) 100

Shank Form A

L2 (mm) 22

Max Cut Depth 1.5xD

Nut Tolerance To Suit

Drill Size (mm) 11.8

L4 (mm) 12

Square Size (mm) 9

Sutton Designation N

X als

Shank d2 (mm) 11

Flute 3

Diameter d1 (inch) 1/4

Order Multiple 1

Type Straight Flute Tap
System of Measurement DIN5156
Thread Form Metric ISO Coarse (M)
Material HSSE V3
Finish TiCN
Item Type Straight Flute
Group Code T808
