Description

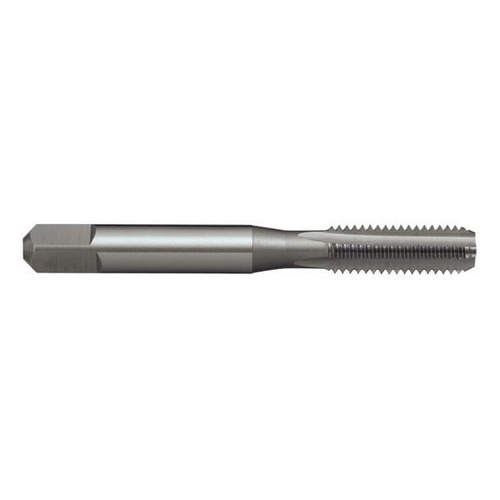

Sutton T825 Straight Flute Tap - Bottoming - HSS

  • Sutton Tools HSS Taps are made in Australia for trusted quality.
  • Suitable for general-purpose use in hand or machine operations and depths up to 1 × Ø.
  • Bottoming Tap offering a continuous cutting edge with almost no taper, it’s usually used to cut threads to the bottom of a blind hole.

Features

  • Tap cut A variety of leads are available to suit various requirements.
  • Square Shank For hard threading work in a variety of materials.
  • HSS made from High-Speed Stee.l
  • Straight flutes suitable for through and blind holes.

Specifications

  • AIMS SKU A0131572
  • Brand Sutton Tools
  • Model Number T8250635
  • Barcode Number 9311963612096
  • TPI 20
  • L1 (mm) 66
  • Order Multiple 1
  • Flute 3
  • Square Size (mm) 5
  • L3 (mm) 25
  • Limit 2B
  • Shank d2 (mm) 6.3
  • L4 (mm) 8
  • Diameter d1 (inch) 1/4
  • Sutton Designation 0
  • Drill Size (mm) 5.1
  • L2 (mm) 19
SKU: A0131572

Sutton T8250635 UNC 1/4'' x 20 Straight Flute Tap - Bottoming - HSS

Sutton T825 Straight Flute Tap - Bottoming - HSS
