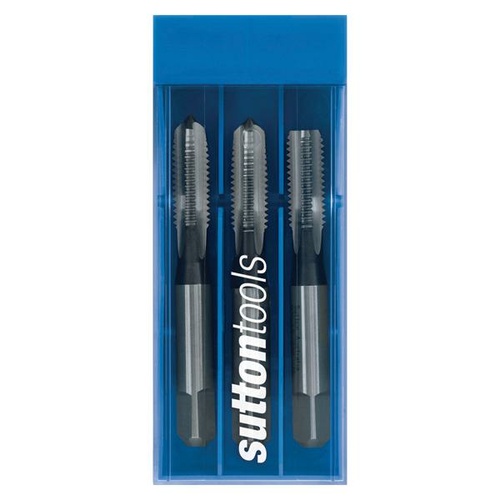

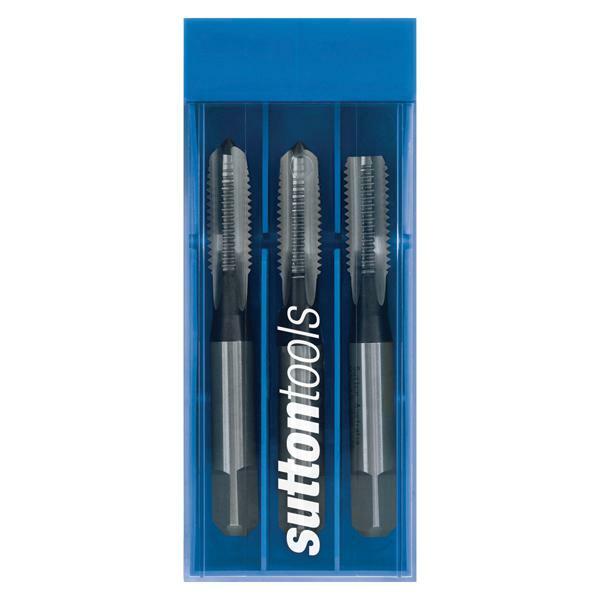

Specifications

AIMS SKU A0016109
Brand Sutton Tools
Model Number T9020805
Barcode Number 9311963089164
Shank (mm) 8
L1 (mm) 72
Pitch (mm) 1
L2 (mm) 22
L3 (mm) 30
z 4
Diameter (metric) MF8
Drill Size (mm) 7
L4 (mm) 9
Sq 6.3
• Group Code T902
• System of Measurement ISO529
• Thread Form ISO Metric Fine (MF)
• Material High Speed Steel (HSS)
• Finish Bright
• Lead Taper/Intermediate/Bottoming
• Application N (for normal general purpose type materials)
• Shank Form Reinforced Shank (with square drive)
• Max Cut Depth 1xD
• Tap Type Straight Flute
• Nut Tolerance 2B
