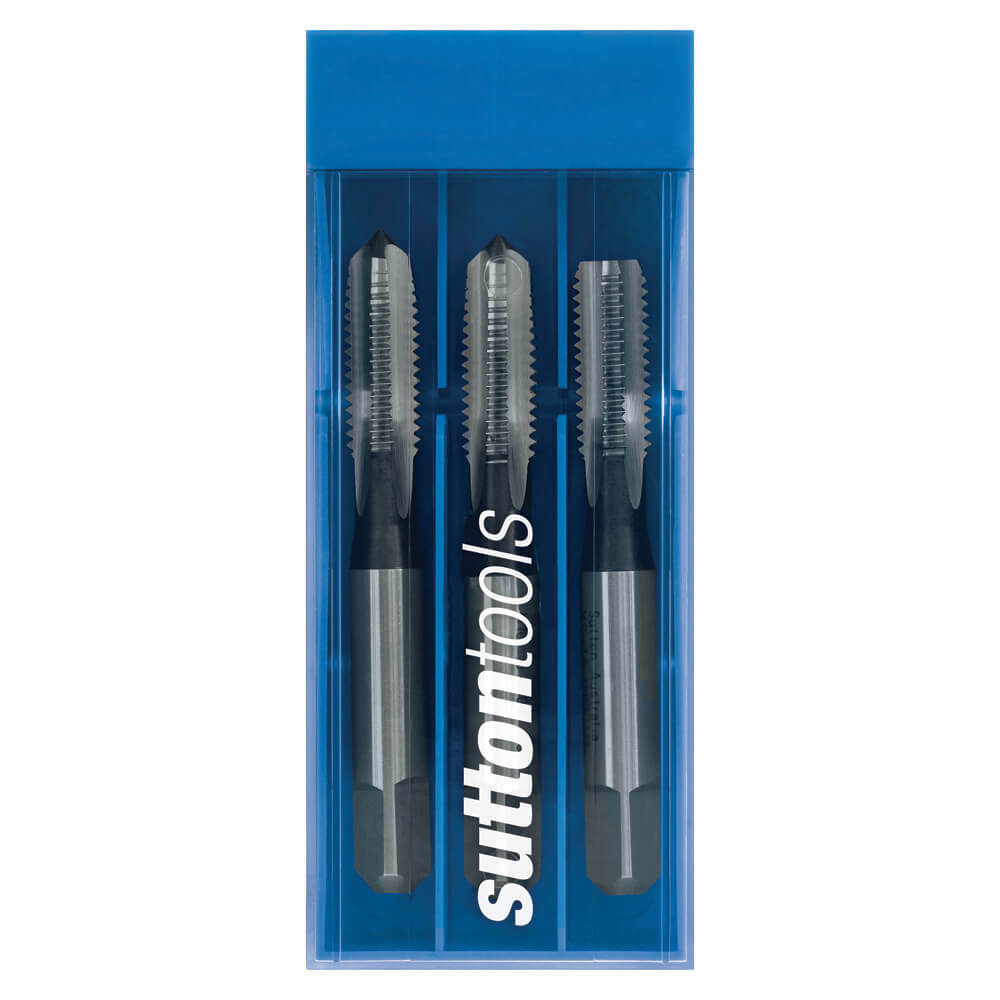

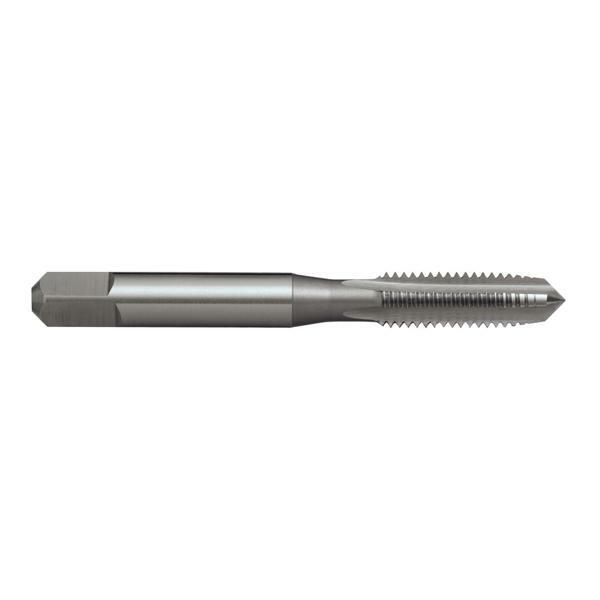

Sutton T903 UNC Straight Flute Tap Set ISO529 - HSS - Sutton Tools

Description

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: High Speed Steel (HSS)
Finish: Bright
Max Cut Depth: 1xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: ISO529
Thread Form: UNC
Nut Tolerance: 2B
Lead: Set

Specifications

AIMS SKU A0016132

Brand Sutton Tools

Model Number T9031270

Barcode Number 9311963014074

Diameter (inch) 1/2

TPI 13

Group Code T903
System of Measurement ISO529
Thread Form UNC
Material High Speed Steel (HSS)
Finish Bright
Lead Taper/Intermediate/Bottoming
Application N (for normal general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 1xD
Tap Type Straight Flute
Nut Tolerance 2B
