Specifications

AIMS SKU A0016144
Brand Sutton Tools
Model Number T9040476
Barcode Number 9311963015804
Diameter (inch) 3/16
TPI 32
Shank (mm) 5
L1 (mm) 58
L2 (mm) 16
L3 (mm) 22
z 3
Drill Size (mm) 4
L4 (mm) 7
Square Size (mm) 4
• Group Code T904
• System of Measurement ISO529
• Thread Form UNF
• Material High Speed Steel (HSS)
• Finish Bright

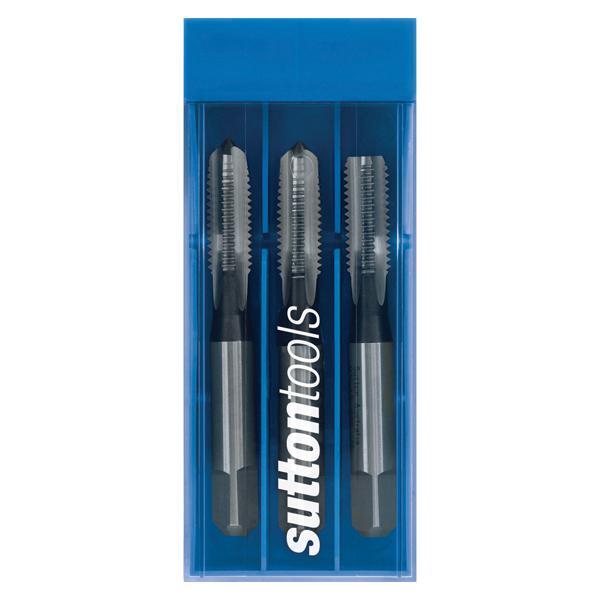

• Lead Taper/Intermediate/Bottoming
• Application N (for normal general purpose type materials)
• Shank Form Reinforced Shank (with square drive)
• Max Cut Depth 1xD
• Tap Type Straight Flute
• Nut Tolerance 2B
