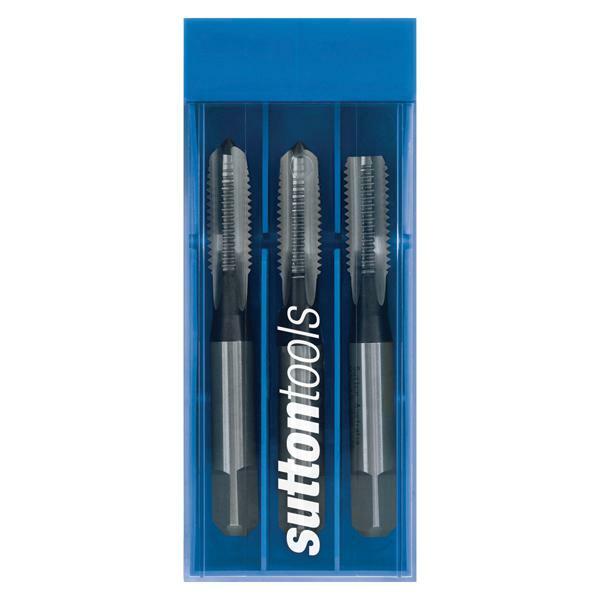

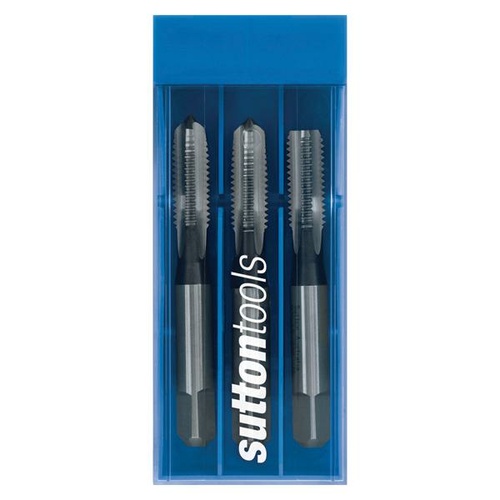

Sutton T906 BSF Straight Flute Tap Set ISO529 - HSS - Sutton Tools

Description

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: High Speed Steel (HSS)
Finish: Bright
Max Cut Depth: 1xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: ISO529
Thread Form: British Standard Fine 55° (BSF)
Nut Tolerance: Z3 Medium
Lead: Set

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications

AIMS SKU A0016173

Brand Sutton Tools

Model Number T9060476

Barcode Number 9311963093031

Diameter (inch) 3/16

TPI 32

Shank (mm) 5

L1 (mm) 58

L2 (mm) 16

L3 (mm) 22

z 3

Drill Size (mm) 4

L4 (mm) 7

Square Size (mm) 4

Group Code T906
System of Measurement ISO529
Thread Form British Standard Fine 55 (BSB)
Material High Speed Steel (HSS)
Finish Bright
Lead Taper/Intermediate/Bottoming
Application N (for normal general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 1xD
Tap Type Straight Flute
Nut Tolerance Z3 Medium
