Specifications

AIMS SKU A0016194
Brand Sutton Tools
Model Number T9091316
Barcode Number 9311963124100
Diameter (inch) G 1/4
TPI 19

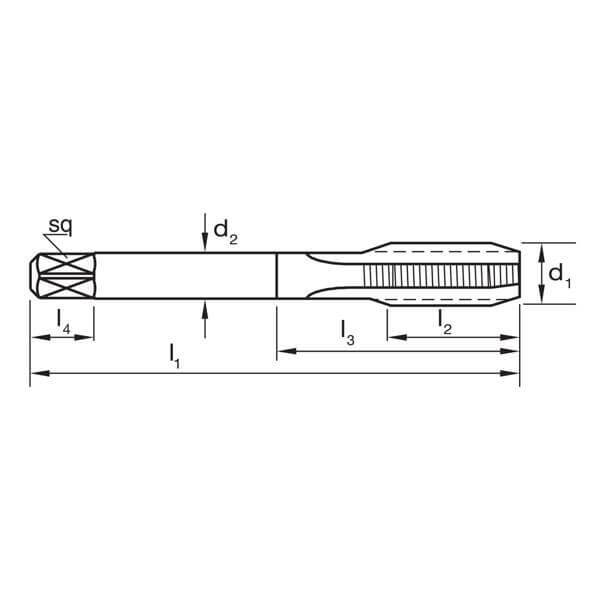

Shank (mm) 10
L1 (mm) 67
L2 (mm) 19
z 4
Drill Size (mm) 11.8
L4 (mm) 11
Square Size (mm) 8
• Group Code T909
• System of Measurement ISO529
• Thread Form ISO G Parallel Series 55 (G-BSPF)
• Material High Speed Steel (HSS)
• Finish Bright

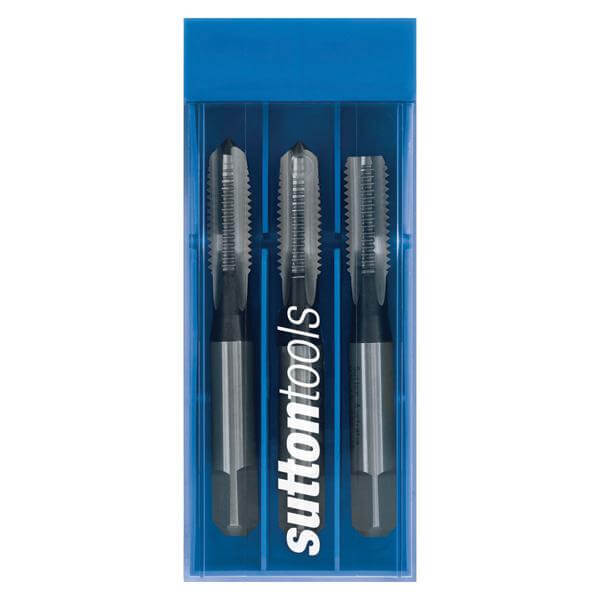

• Lead Taper/Intermediate/Bottoming
• Application N (for normal general purpose type materials)
• Shank Form Reduced Shank (with square drive)
• Max Cut Depth 1xD
• Tap Type Straight Flute
• Nut Tolerance Z3
