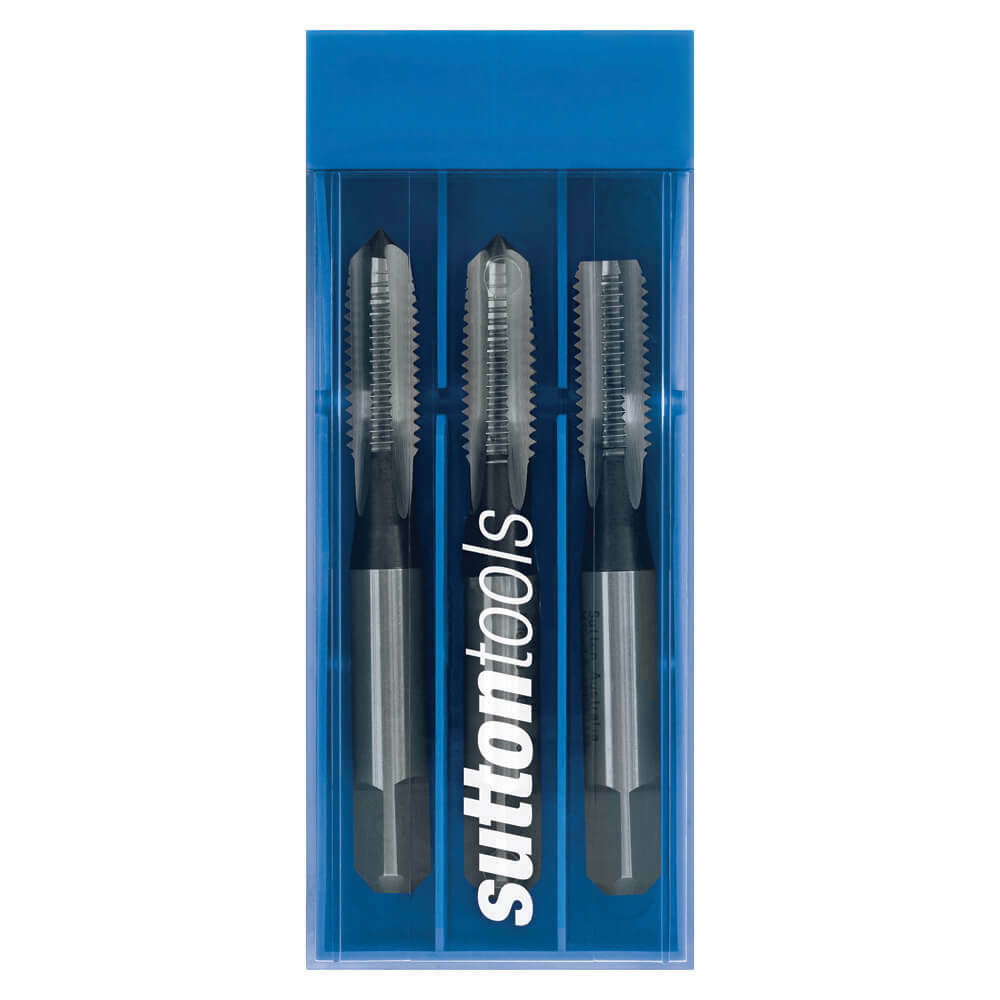

Sutton T910 8UN Straight Flute Tap Set ISO529 - HSS - Sutton Tools

Description

Features

Suitable for materials up to 1000N/mm2
Through holes
Depths up to 3 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: High Speed Steel (HSS)
Finish: Bright
Max Cut Depth: 1xD
Shank Form: Reinforced Shank (with square drive)
Type: Straight Flute
Standard: ISO529
Thread Form: Unified National Form 60° (8UN)
Nut Tolerance: GH8/2B
Lead: Set

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications

AIMS SKU A0016201

Brand Sutton Tools

Model Number T9103175

Barcode Number 9311963543673

Diameter (inch) 1 1/4

TPI 8

Shank (mm) 22.4

L1 (mm) 151

L2 (mm) 51

Drill Size (mm) 28.5

L4 (mm) 22

Group Code T910
System of Measurement ISO529
Thread Form Unified National Form 60 (8UN)
Material High Speed Steel (HSS)
Finish Bright
Lead Taper/Intermediate/Bottoming
Application N (for normal general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 1xD
Tap Type Straight Flute
Nut Tolerance GH8/2B
