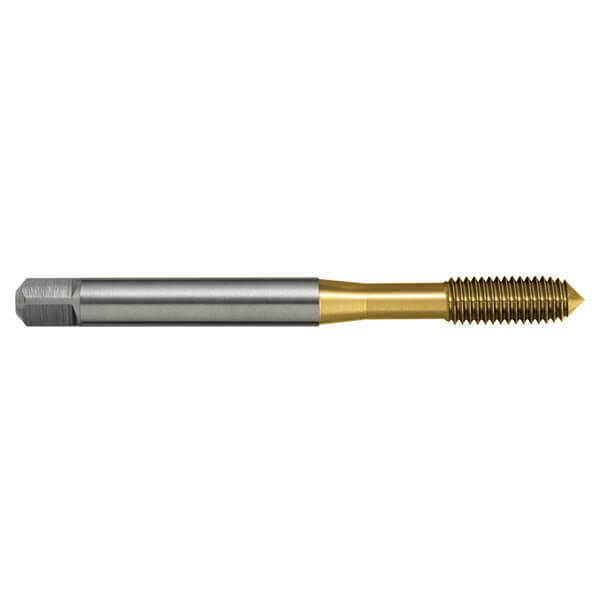

Sutton T3130260 Metric M2.6 x 0.45 Thread Forming Tap - HSSE V3 TiN - Sutton Tools

Description

Features

Suitable for materials with >10% elongation
Through or blind holes
Depths up to 3 x d1

Specifications

Designation: N (for normal and general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Fluteless - No Groove
Standard: DIN2174
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Stainless Steel - Austenitic: Age Hardened
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications

AIMS SKU A0014454

Brand Sutton Tools

Model Number T3130260

Barcode Number 9311963554143

Shank (mm) 2.8

L1 (mm) 50

Pitch (mm) 0.45

L2 (mm) 9

Diameter (metric) M2.6

Drill Size (mm) 2.4

L4 (mm) 5

Square Size (mm) 2.1

Group Code T313
System of Measurement DIN2174
Thread Form ISO Metric Coarse (M)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Titanium Nitride (TiN)
Lead Form C / 3 x P
Application N (for normal and general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Fluteless - No Groove
Nut Tolerance 6HX
