Specifications

AIMS SKU A0014776
Brand Sutton Tools
Model Number T3850300
Barcode Number 9311963002989

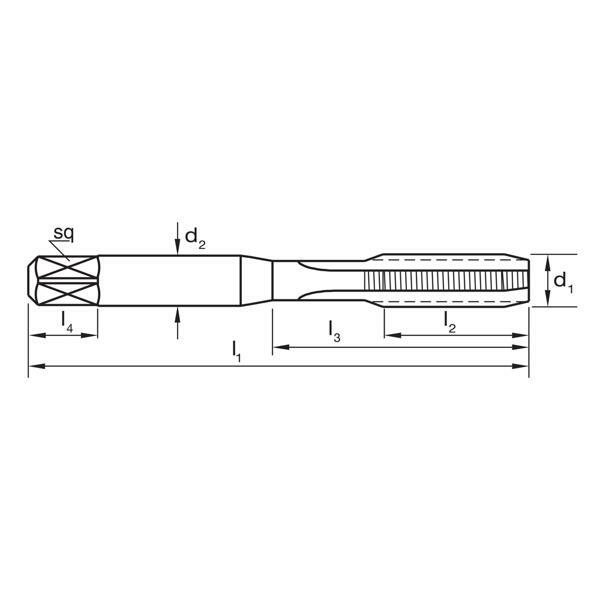

Shank (mm) 3.15
L1 (mm) 48
L2 (mm) 11
L3 (mm) 15
z 3
Diameter (metric) M3
Drill Size (mm) 2.5
L4 (mm) 5
Sq 2.5
• Group Code T385
• System of Measurement ISO529
• Thread Form ISO Metric Coarse (M)
• Material High Speed Steel (HSS)
• Finish Bright
• Lead Intermediate
• Application N (for normal general purpose type materials)
• Shank Form Reinforced Shank (with square drive)
• Max Cut Depth 1xD
• Tap Type Straight Flute
• Nut Tolerance ISO 2 / 6H
