Specifications

AIMS SKU A0014781
Brand Sutton Tools
Model Number T3850600
Barcode Number 9311963000794

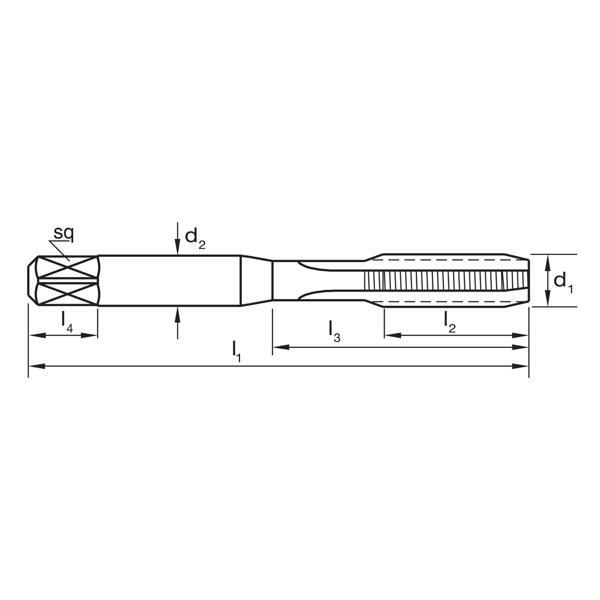

Shank (mm) 6.3
L1 (mm) 66
L2 (mm) 19
L3 (mm) 26
z 3
Diameter (metric) M6
Drill Size (mm) 5
L4 (mm) 8
Sq 5
• Group Code T385
• System of Measurement ISO529
• Thread Form ISO Metric Coarse (M)
• Material High Speed Steel (HSS)
• Finish Bright
• Lead Intermediate
• Application N (for normal general purpose type materials)
• Shank Form Reinforced Shank (with square drive)
• Max Cut Depth 1xD
• Tap Type Straight Flute
• Nut Tolerance ISO 2 / 6H
