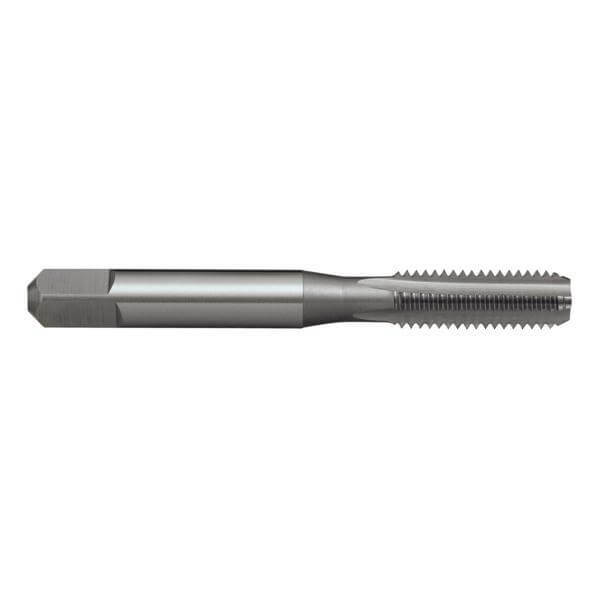

Sutton T4161588 UNC 5/8 x 11 Straight Flute Tap - Bottoming - HSS

Description

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: High Speed Steel (HSS)
Finish: Bright
Max Cut Depth: 1xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: ISO529
Thread Form: UNC
Nut Tolerance: 2B
Lead: Bottoming

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications

AIMS SKU A0015162

Brand Sutton Tools

Model Number T4161588

Barcode Number 9311963010458

Diameter (inch) 5/8

TPI 11

Shank (mm) 12.5

L1 (mm) 102

L2 (mm) 32

z 4

Drill Size (mm) 13.5

L4 (mm) 13

Square Size (mm) 10

Group Code T416
System of Measurement ISO529
Thread Form UNC
Material High Speed Steel (HSS)
Finish Bright
Lead Bottoming
Application N (for normal general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 1xD
Tap Type Straight Flute
Nut Tolerance 2B
