Description

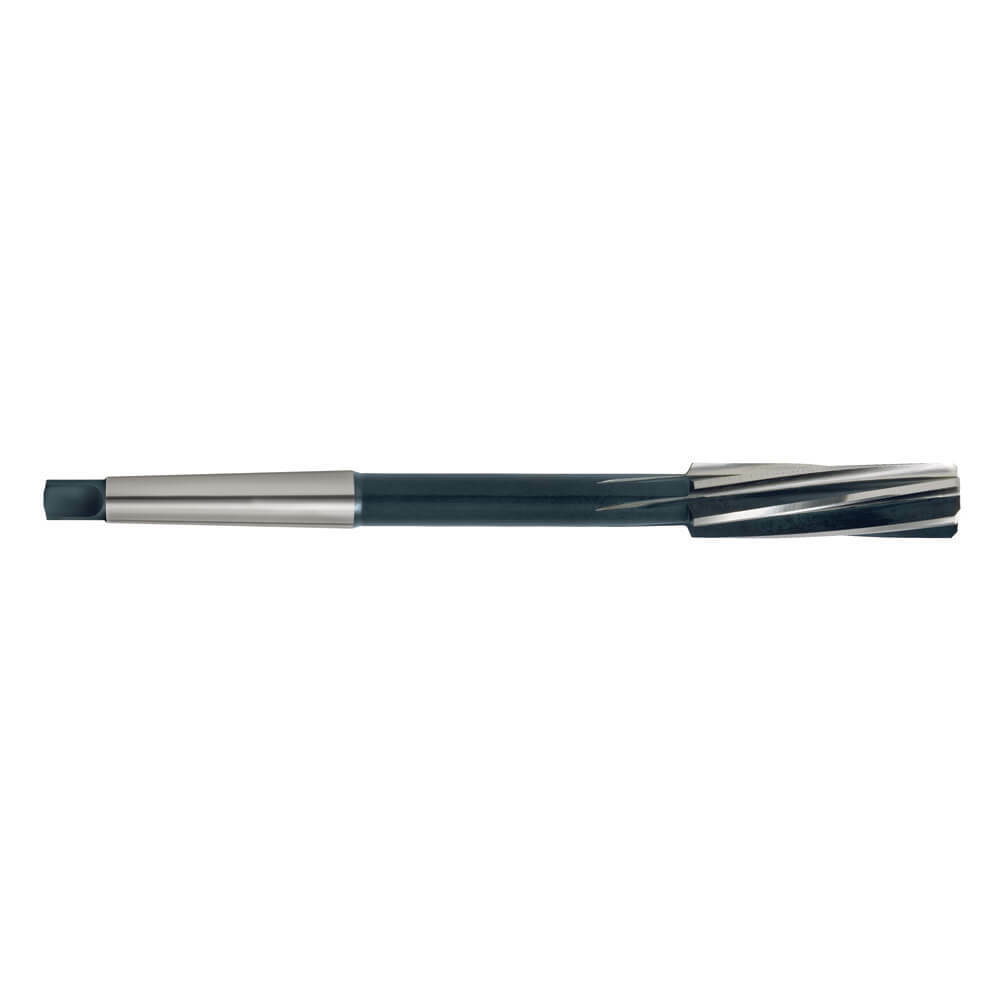

Sutton Tools Machine Reamers

  • The R101 is a machine reamer and would be used with a taper shank arbor.
  • Used mainly in machine shops/Engineering shops.

Features

  • Machine use
  • Suitable for toolroom & workshop use
  • Produces clean, accurate holes, to an H7 tolerance

Specifications

  • Designation: N
  • Material: High-Speed Steel
  • Finish: Bright
  • Helix Angle: L10
  • Type: Machine
  • Standard: DIN 208

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Cast Iron, Grey (GG) - Ferritic / Pearlitic

Specifications

  • AIMS SKU A0012168
  • Brand Sutton Tools
  • Model Number R1011600
  • Barcode Number 9311963004792
  • Morse Taper #2
  • Reamer Size (mm) 16

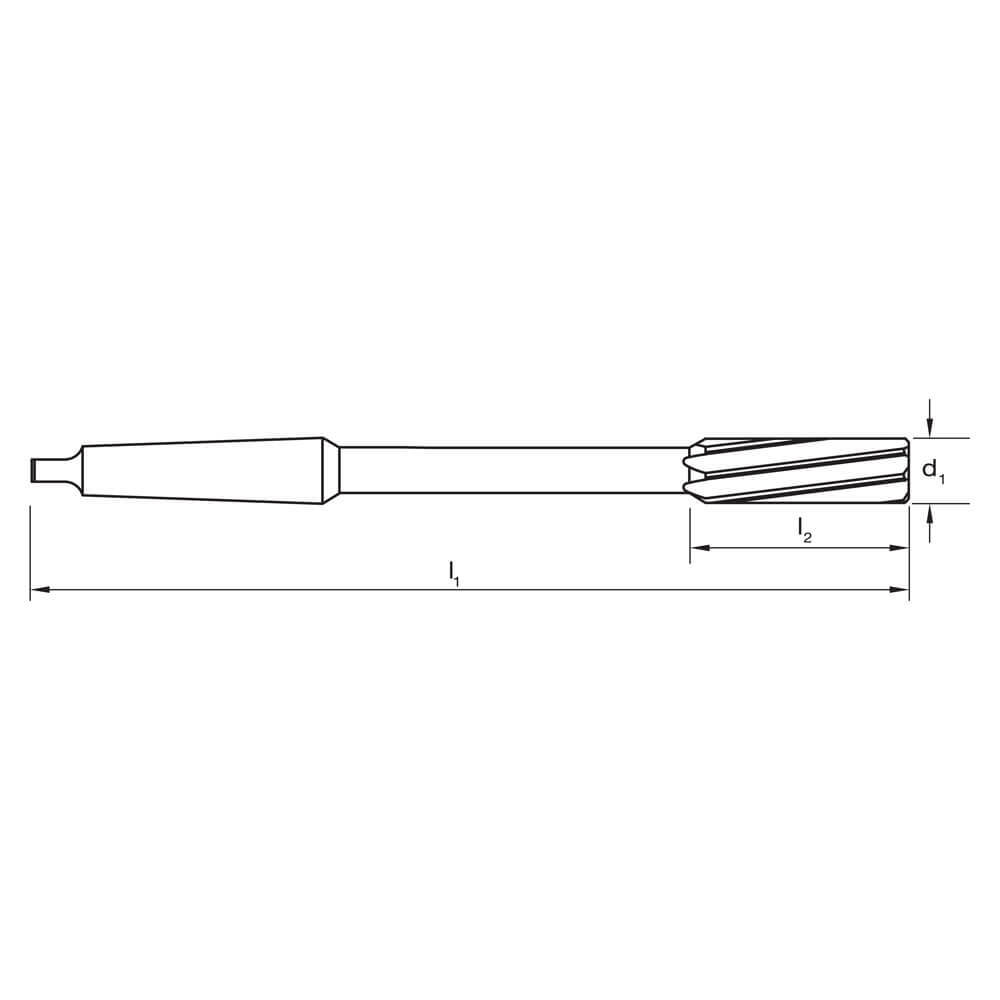

  • L1 (mm) 210
  • L2 (mm) 52
  • D1 (mm) 16
  • z 8
  • Group Code R101
  • Barcode 9311963007410
  • Type Morse Taper Shank Machine Reamer
  • System of Measurement DIN 208,Metric
  • Material High Speed Steel (HSS)
  • Finish Bright
  • Helix Angle L10
SKU: A0012168

Sutton R1011600 16mm #2 Morse Taper Reamer (Machine) DIN208 HSS

Sutton Tools Machine Reamers

$211.75
RRP $277.29
SAVE $65.54 (24%)
