Sutton Tools R102 Chucking Reamer DIN212 - Cobalt Steel

Description

Features

Machine use
Suitable for toolroom & workshop use
Produces clean, accurate holes, to a H7 tolerance

Specifications

Designation: N
Material: High Speed Steel Cobalt
Finish: Bright
Helix Angle: L10
Type: Chucking
Standard: DIN 212 / ISO 521
Hole Tolerance: H7

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Cast Iron, Grey (GG) - Ferritic / Pearlitic
Cast Iron, Nodular (GGG) – Ferritic
Cast Iron, Malleable - Ferritic

Specifications

AIMS SKU A0012241

Brand Sutton Tools

Model Number R1020397

Barcode Number 9311963127248

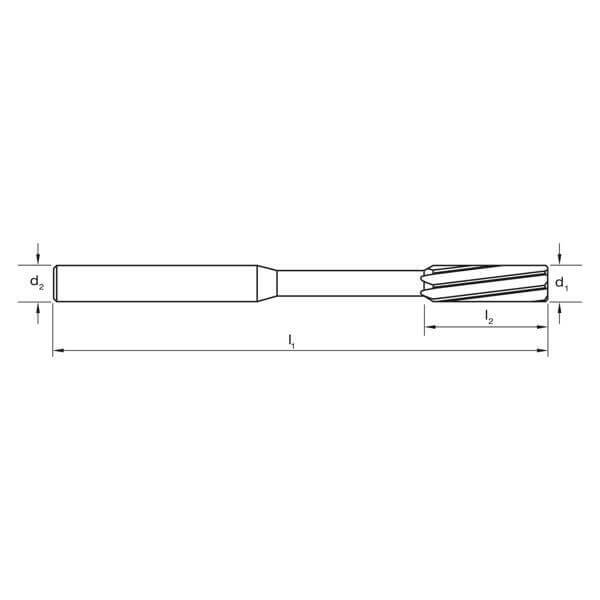

Reamer Size (mm) 3.97

D2 (mm) 4

L1 (mm) 75

L2 (mm) 19

D1 (mm) 3.97

z 6

Group Code R102
Barcode 9311963126722
Type Chucking Reamer
System of Measurement DIN 212 / ISO 521,Metric
Material High Speed Steel Cobalt (HSS Co5%)
Finish Bright
Helix Angle L10
Hole Tolerance h7
